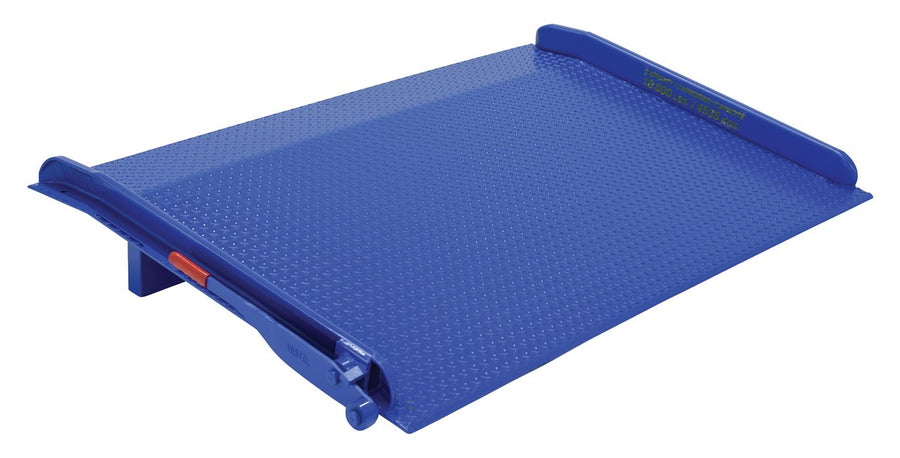

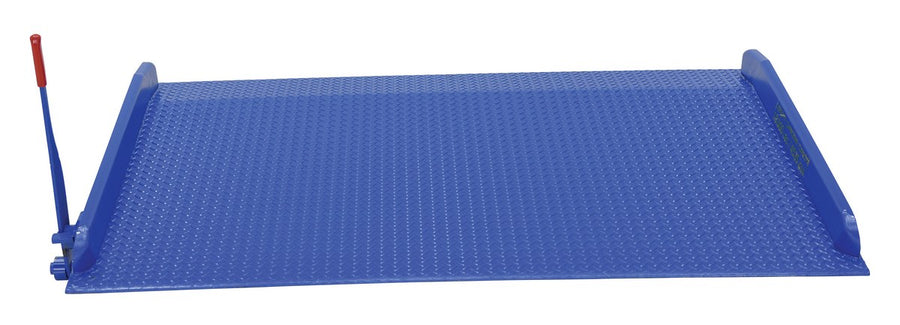

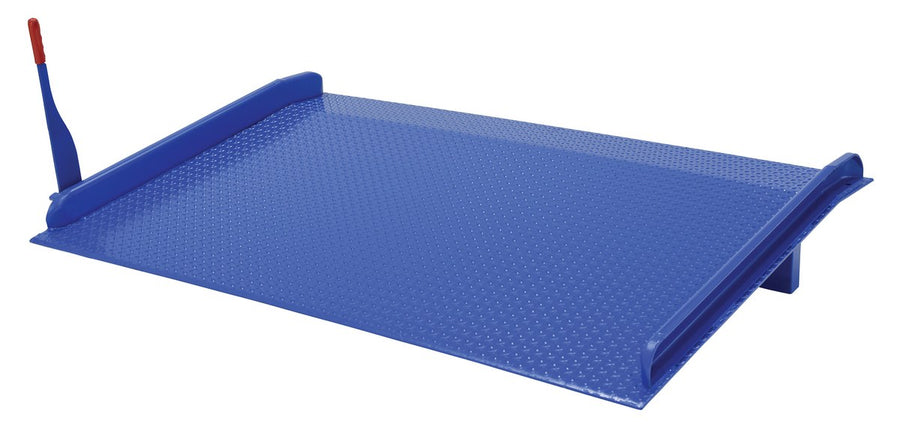

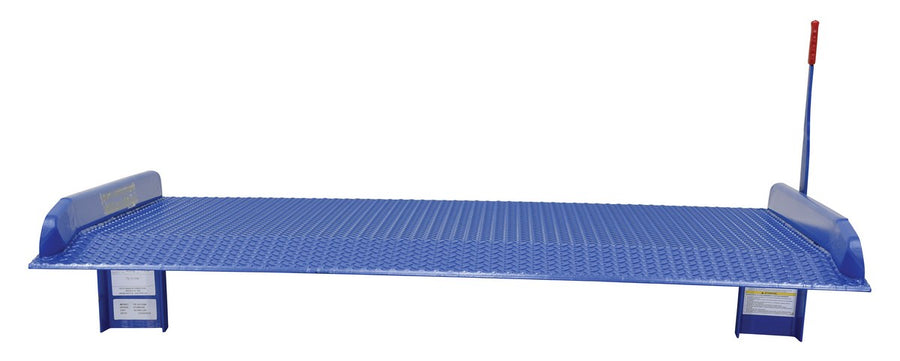

Vestil Industrial Steel Dockboard - 48x72x12.313 inches, 10,000 lbs Capacity - TS-10-7248

Manufacturer: Vestil, Manufacturer Part Number: TS-10-7248

Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.

SPECIFICATIONS
10,000 lbs Capacity
48" x 72" x 12.313" - 426 lbs.
