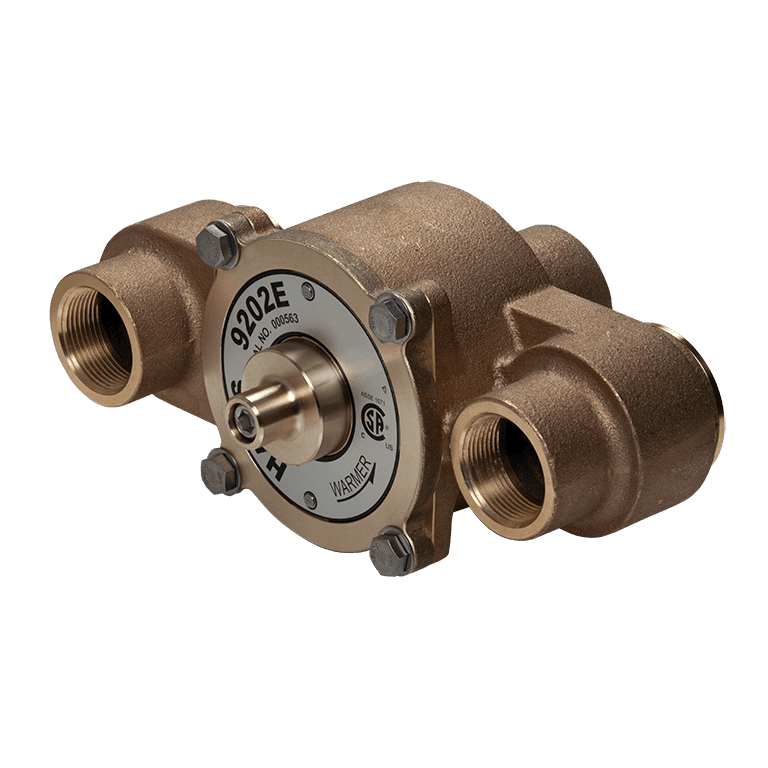

Thermostatic Mixing Valve

Manufacturer: Haws, Manufacturer Part Number: 9202E

Model 9202E Emergency Valve (patent pending) thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment. Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet (1.52 to 2.44 m) downstream for the most accurate measurement.)

-Optional recessed or surface mounted valve box available
-A flow rate of 1 to 78 gpm (295 L) for better temperature control across the operating range
-Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
-Wax based thermostat technology for fast response time with proven highly reliable temperature control
-Highest Cold Water Bypass flow rate in the industry (64% of rated tepid flow rate)
-Brass valve design with internal check stops
-Over-sized valve seats resist failures caused by foreign matter
-A new and efficient shuttle design eliminates valve sticking
-A custom funnel design improves temperature control at low flow rates
-Outlet temperature is factory set to 85° F (29° C)
-Tempered water: High temperature limit is factory set to 90° F (32° C)
-Cold water by-pass valves are closed during normal operation, regardless of flow rate
-For important installation information, please read Scald Warning.
-CSA Listings: CSA certified per ASSE 1071, ANSI Z358.1 and applicable sections of CSA B125.3.
