Manufacturer: Haws, Manufacturer Part Number: 9201H

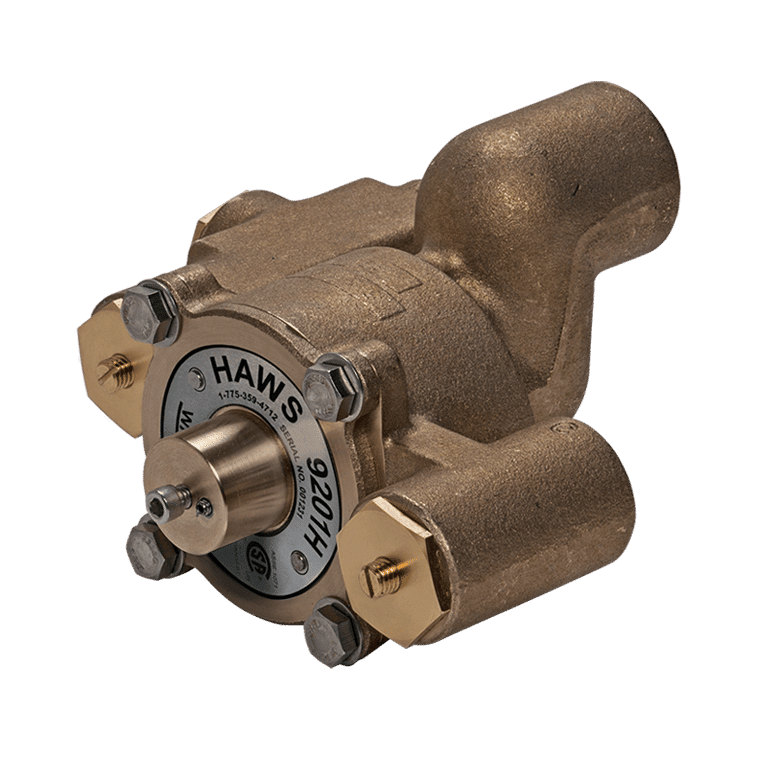

Model 9201H, low-lead Emergency Valve (patent pending), thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment. The valve contains a secondary high temperature limit valve to provide additional protection to the user in the event of main tempering valve malfunction. Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet downstream for the most accurate measurement.)
-Optional recessed or surface mounted valve box available
-A flow rate of 1 to 31 gpm (3.8 to 117.3 L) for better temperature control across the operating range
-AXION's superior design and technology provide a complete safety solution for increased victim comfort
-Lowest internal pressure drop for this class of valve (advantage where supply pressure is low)
-Wax based thermostat technology for fast response time with proven highly reliable temperature control
Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
-Low-lead brass valve design with internal check stops
-Oversized valve seats resist failures caused by foreign matter
-A new and efficient shuttle design eliminates valve sticking
-A custom funnel design improves temperature control at low flow rates
-Outlet temperature is factory set to 85° F (29° C)
-Tempered water: High temperature limit is factory set to 87° F (30° C)
-Cold water by-pass valves are closed during normal operation, regardless of flow rate
-Listings: CSA certified per ASSE 1071, ANSI Z358.1, applicable sections of CSA B125.3, NSF/ANSI 372, NSF/ANSI 61-section 8, California Health and Safety Code 116875 (AB 1953).
