ADA Vandal-Resistant 14 Gauge Fountain and Bottle Filler

Manufacturer: Haws, Manufacturer Part Number: 1109.14P

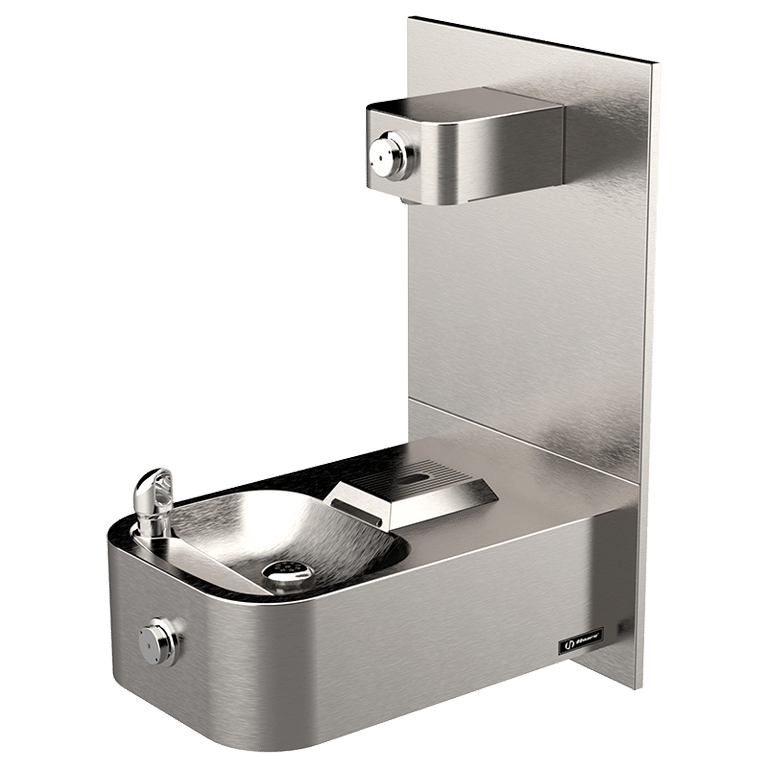

Model 1109.14P wall-mounted vandal-resistant ADA drinking fountain and bottle filler shall include an 14-gauge Type 304 Stainless Steel satin finish basin, 14 gauge Type 304 Stainless Steel bottle filler bracket, 3/16″ (.47 cm) thick steel mounting plates for fountain and bottle filler, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valves with front accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plates, and 1-1/4” NPT trap. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions.

Product Includes:
• 1109.14: Single Drinking Fountain
• 6469: Drip Tray
• 1920: Bottle Filler
• BP3: Fountain Back Panel
• BP15: Bottle Filler Back Panel
• 6700: (X2) In-Wall Mounting Pate
