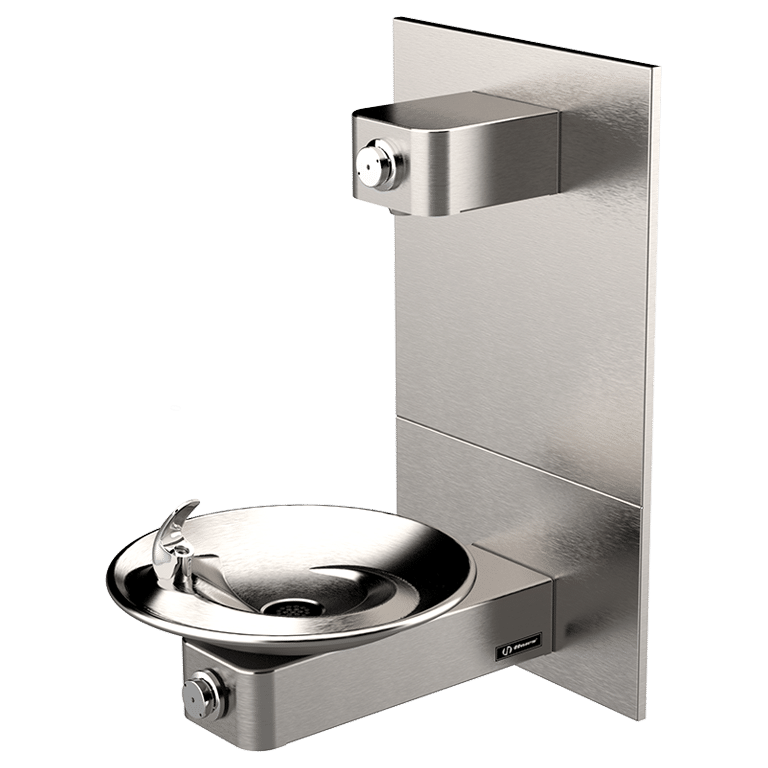

ADA Vandal-Resistant Fountain and Bottle Filler

Manufacturer: Haws, Manufacturer Part Number: 1001P

Model 1001P wall mounted vandal-resistant ADA drinking fountain and bottle filler shall include an 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket and bottle filler bracket, 3/16″ (.47 cm) thick steel mounting plates for fountain and bottle filler, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valves with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plates, and 1-1/4" (3.2 cm) O.D. waste pipe. (P-trap and stop require rear access). In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions.

Product Includes:
• 1001: Single Drinking Fountain
• 1920: Bottle Filler
• BP6: Back Panel
• BP15: Back Panel
• 6700 (X2): In-Wall Mounting Plates
