Vestil Industrial Sliding Tilt Table - 48"x48" Platform, 4000 lb Capacity, Hinge Design - EHTT-L

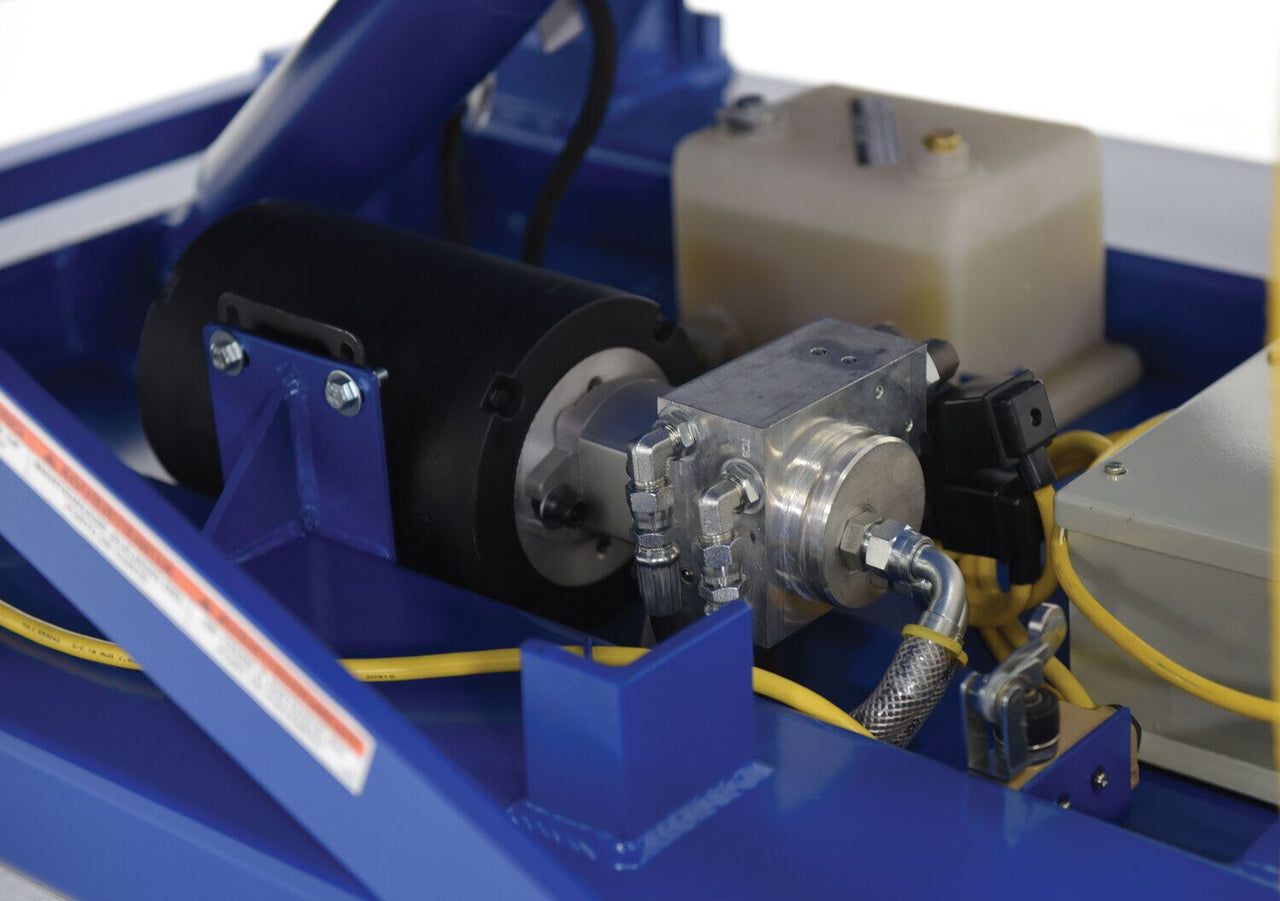

Design: Hinge, Platform Size (W x L): 48" x 48", Capacity: 4000 lbs., Level Height: 10", Maximum Tilt: 45° – Hinge & Sliding Tilt Tables – Hinge and Sliding Tilt Tables offer the rugged durability of the standard Efficiency Master line of tilters, plus they offer an extra low platform height. A 12" lip without side gussets allows for loading and unloading on three sides. Standard features include a 2 HP 208–230/460V AC power unit with a 24 volt two button hand held pendant control, other voltages available. A pressure plated pump coupled to an application specific manifold features counterbalanced valves and modulated flow control for maximum efficiency. The Sliding Tilt Table incorporates a patented sliding link–tilt design for maximum stability while occupying minimum space. As the table is tilted, the front edge of the container moves away from the operator. The center–of–gravity of the load remains closer to the center of the frame.
