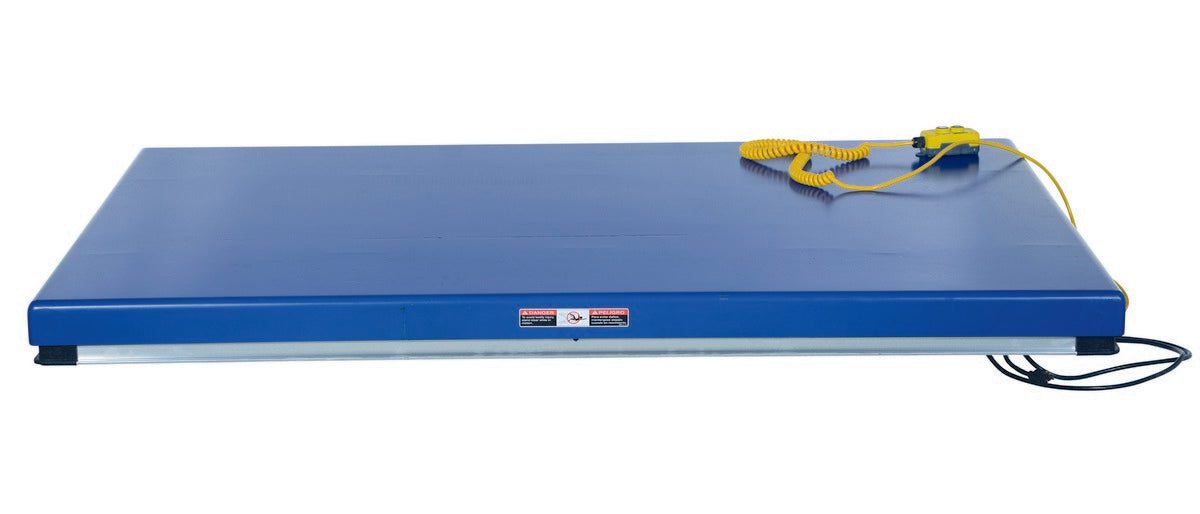

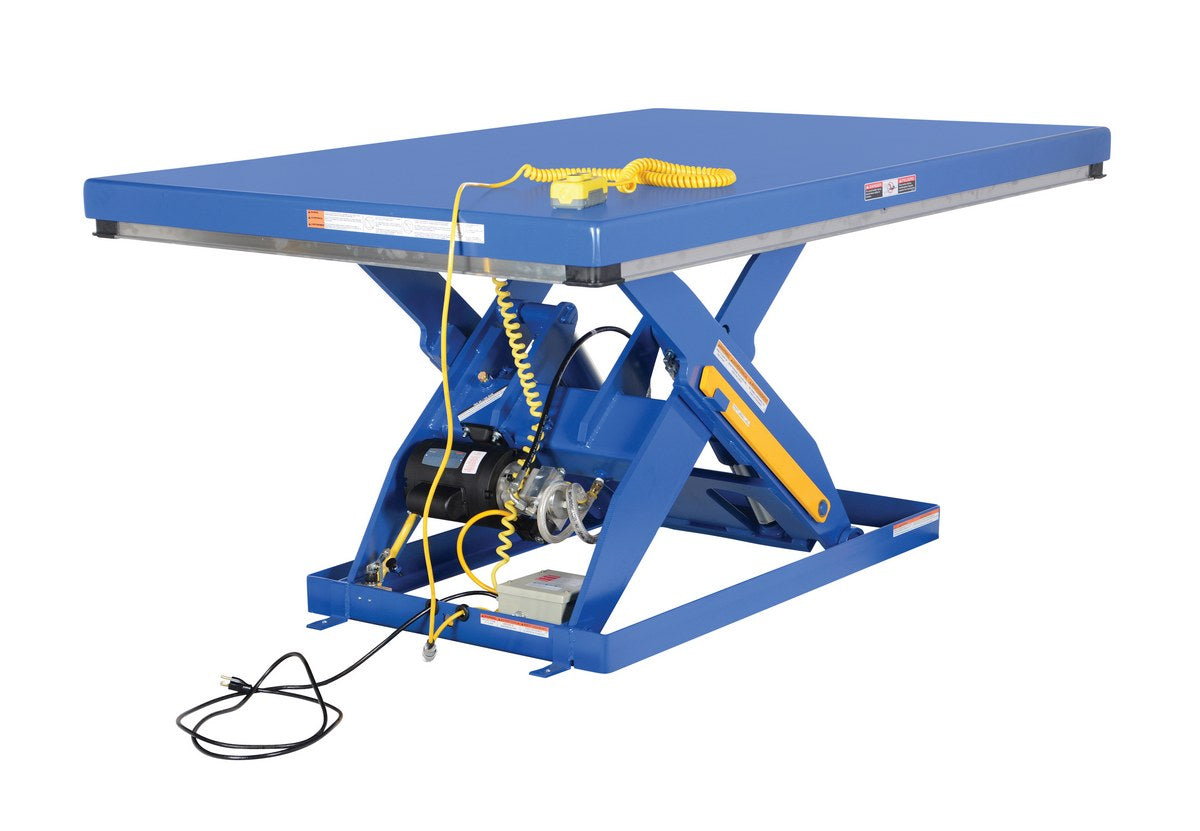

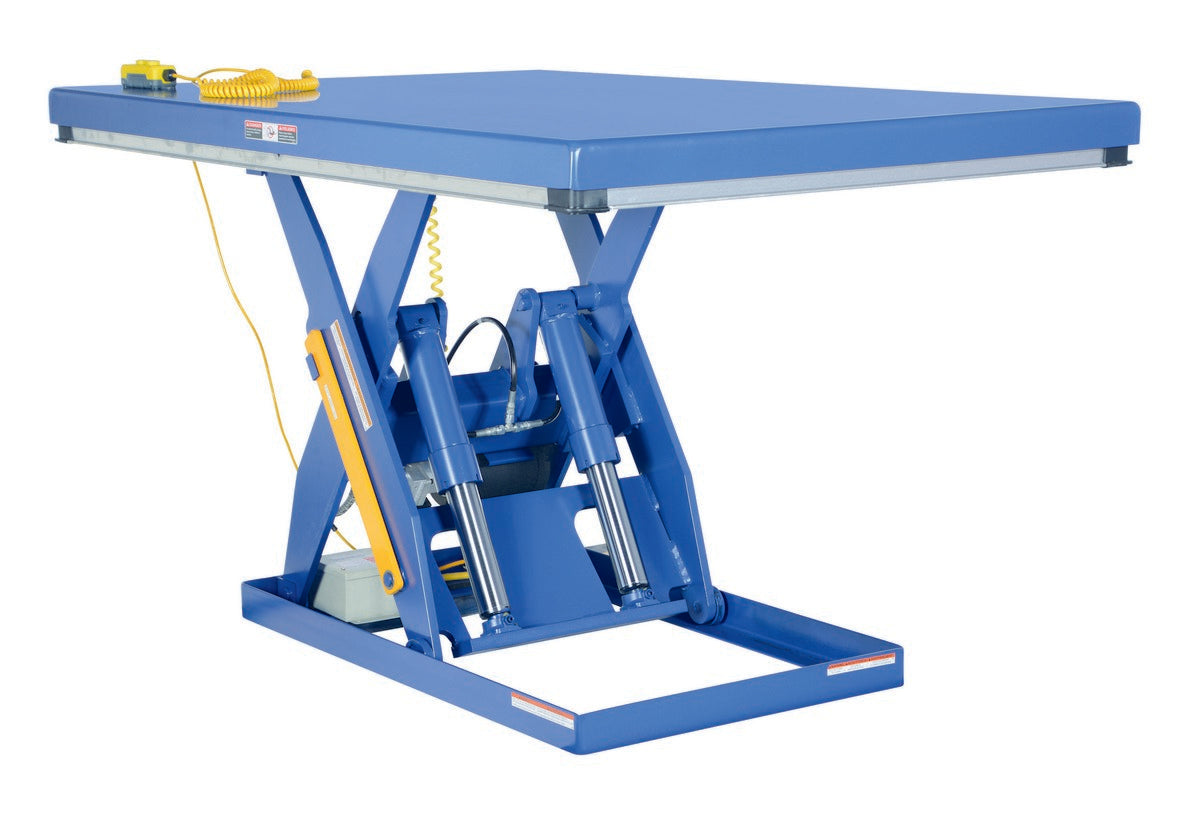

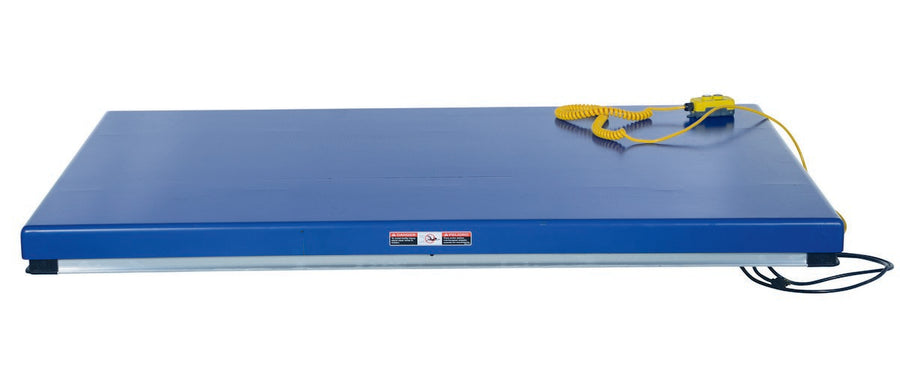

Vestil Industrial Electric Hydraulic Scissor Lift Table - 48x72 inch Platform - 3000 lb Capacity - EHLT-4872-3-43
Request a quote
Vestil Industrial Electric Hydraulic Scissor Lift Table - 48x72 inch Platform - 3000 lb Capacity - EHLT-4872-3-43 – MFG # EHLT-4872-3-43. We'll reply with price and freight, usually the same business day.
Download document
Enter your email and the PDF opens straight away. We'll only use it to help with this product.
Thank you
We've got your message and will be in touch shortly. Need it sooner? Call 800-474-5911.
Key features
Electric-Hydraulic Scissor Lift Table for Ergonomic Load Lifting and Workstation Positioning, 3,000 lb. Capacity with 48 in. x 72 in., Blue Finish – Model EHLT-4872-3-43
| Dimensions & capacity | |
| Load capacity | 3000 lb |
|---|---|
| Overall length | 72.38 in |
| Overall width | 48.38 in |
| Overall height | 7 in |
| Unit weight | 845 lb |
| Construction | |
| Material | Steel |
| Color | Blue |
| Assembly | Assembled |
| Category | Lift & Tilt Tables |
| Product family | Electric Hydraulic Scissor Lift Tables |
| Warranty & origin | |
| Warranty | 1 Year |
| Warranty type | Limited - Parts |
| Country of origin | United States |
| Shipping | |
| Ship method | LTL Palletized |
| Package length | 52 in |
| Package width | 75 in |
| Package height | 16 in |
| Shipping weight | 965 lb |
| Freight class | 70 |
| NMFC | 120700 |
| Procurement codes | |
| MFG part number | EHLT-4872-3-43 |
| UNSPSC | 24101617 |
| HTS code | 8428.90.0390 |
| Sold as | EA-Each |
Electric-Hydraulic Scissor Lift Table for Ergonomic Load Lifting and Workstation Positioning, 3,000 lb. Capacity with 48 in. x 72 in., Blue Finish – Model EHLT-4872-3-43
Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities. Safety features include: electric toe guard to protect pinch points during lowering of the table, brass velocity fuse to maintain platform height regardless of hydraulic pressure, 24V AC push–button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height, reducing motor wear. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.
SPECIFICATIONS
Service Range 7" to 43", Platform Size: 48"Wx 72"L
3,000 lbs Capacity
72" x 48" x 43" - 975 lbs.
Vestil 1 year limited warranty
Covers defects in material and workmanship. Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders) are covered for 1 year; wearing parts (bearings, hoses, wheels, seals, brushes and batteries) for 90 days, from the date the product ships.
Not covered: labor, freight, misuse, negligent operation or repair, corrosive conditions, improper maintenance, shipping damage, accidents and unauthorized modifications. Read the full warranty (PDF)
