Vestil

Manufacturer: Vestil, Manufacturer Part Number: CJIB-3Under I–Beam to Ground: 84", I–Beam Usable Length: 54", I–Beam (Flange x Height): 2.66" x 4", Capacity (Pounds): 300 – Mini Overhead Cantilever Jibs – Utilize this unique jib in work cells and work areas. Unique fixed–height design allows for outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Straddle width is 48" (ID). Hoist and trolley can be ordered separately. Steel construction.

Manufacturer: Vestil, Manufacturer Part Number: CJIB-6Under I–Beam to Ground: 84", I–Beam Usable Length: 54", I–Beam (Flange x Height): 2.66" x 4", Capacity (Pounds): 600 – Mini Overhead Cantilever Jibs – Utilize this unique jib in work cells and work areas. Unique fixed–height design allows for outriggers to be mounted underneath a work bench. Easily lift product from cart to workbench. Straddle width is 48" (ID). Hoist and trolley can be ordered separately. Steel construction.

Manufacturer: Vestil, Manufacturer Part Number: WL-100-10-710Capacity: 10,000 lbs., Platform Size: 84" x 120", Lowered Height: 14", Raised Height: 72", Overall Frame Size: 62" x 118" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

Manufacturer: Vestil, Manufacturer Part Number: WL-100-12-710Capacity: 12,000 lbs., Platform Size: 84" x 120", Lowered Height: 14", Raised Height: 72", Overall Frame Size: 62" x 118" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

Manufacturer: Vestil, Manufacturer Part Number: WL-100-5-710Capacity: 5,000 lbs., Platform Size: 84" x 120", Lowered Height: 8", Raised Height: 68", Overall Frame Size: 62" x 93" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

Manufacturer: Vestil, Manufacturer Part Number: WL-100-6-710Capacity: 6,000 lbs., Platform Size: 84" x 120", Lowered Height: 10", Raised Height: 70", Overall Frame Size: 62" x 93" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

Manufacturer: Vestil, Manufacturer Part Number: WL-100-8-710Capacity: 8,000 lbs., Platform Size: 84" x 120", Lowered Height: 10", Raised Height: 70", Overall Frame Size: 62" x 118" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06008436Size (W x L): 84" x 36", Ht. Difference (8°/17%): 4", Ht. Difference (11°/19%): 5", Capacity: 6,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06008448Size (W x L): 84" x 48", Ht. Difference (8°/17%): 5", Ht. Difference (11°/19%): 7", Capacity: 6,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: TS-20-8448Capacity: 20,000 lbs., Overall Size: 84"W x 48"L, Height Difference: 7" – Steel Truck Dockboard – Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.

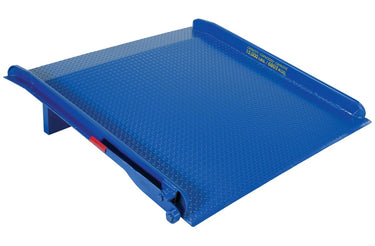

Manufacturer: Vestil, Manufacturer Part Number: TS-25-8448Capacity: 25,000 lbs., Overall Size: 84"W x 48"L, Height Difference: 7" – Steel Truck Dockboard – Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06008460Size (W x L): 84" x 60", Ht. Difference (8°/17%): 7", Ht. Difference (11°/19%): 10", Capacity: 6,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-08008460Size (W x L): 84" x 60", Ht. Difference (8°/17%): 7", Ht. Difference (11°/19%): 10", Capacity: 8,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: TS-20-8460Capacity: 20,000 lbs., Overall Size: 84"W x 60"L, Height Difference: 10" – Steel Truck Dockboard – Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: WL-100-10-78Capacity: 10,000 lbs., Platform Size: 84" x 96", Lowered Height: 14", Raised Height: 72", Overall Frame Size: 62" x 93" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

Manufacturer: Vestil, Manufacturer Part Number: WL-100-12-78Capacity: 12,000 lbs., Platform Size: 84" x 96", Lowered Height: 14", Raised Height: 72", Overall Frame Size: 62" x 93" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

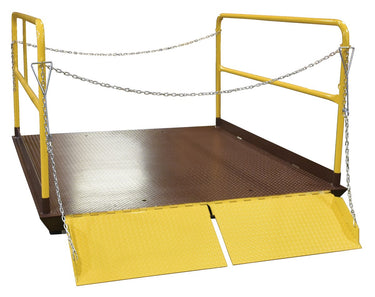

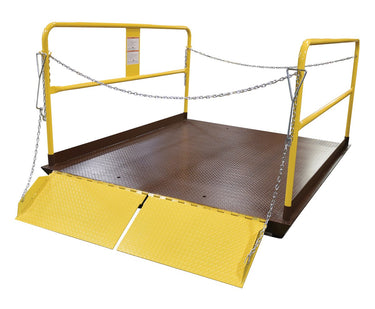

Manufacturer: Vestil, Manufacturer Part Number: WL-100-5-78Capacity: 5,000 lbs., Platform Size: 84" x 96", Lowered Height: 8", Raised Height: 68", Overall Frame Size: 62" x 93" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

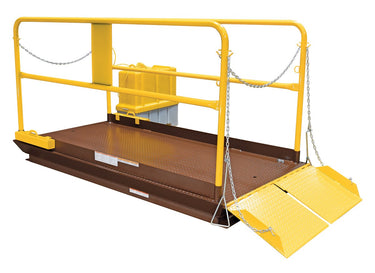

Manufacturer: Vestil, Manufacturer Part Number: WL-100-6-78Capacity: 6,000 lbs., Platform Size: 84" x 96", Lowered Height: 10", Raised Height: 70", Overall Frame Size: 62" x 93" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

Manufacturer: Vestil, Manufacturer Part Number: WL-100-8-78Capacity: 8,000 lbs., Platform Size: 84" x 96", Lowered Height: 10", Raised Height: 70", Overall Frame Size: 62" x 93" – Electric–Hydraulic Scissor Dock – Save time and reduce man–hours where there are no docks. Pit or surface mount with the optional approach ramp. Engineered and designed for maximum safety and efficiency. Checkered plate deck is made of heavy gauge steel for years of use. Hydraulic cylinders feature emergency velocity fuse if line breaks. Complete with upper travel limit switch and overload relief valve. Push–button control is 24V AC on a 20 foot long coil cord. Prewired control box includes magnetic starter and overload fuse. High visibility removable handrails with fixed toeboards are standard. Includes beveled toe–guards and electric toe–guards around perimeter of platform. External 6.5 HP 208–230/460V, 3–phase, 60 Hz motor may be located up to 8 feet away from lift. OSHA and ANSI compliant.

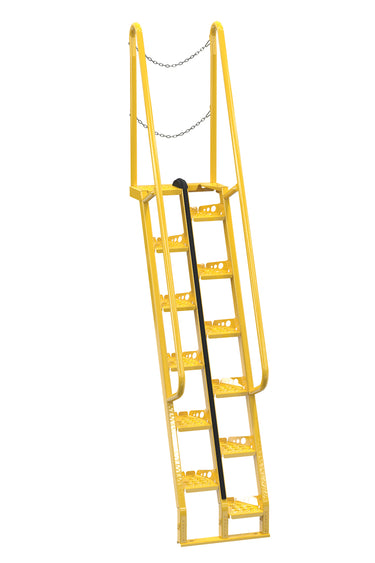

Manufacturer: Vestil, Manufacturer Part Number: ATS-7-68Number of Steps: 10, Top Step Height: 84", Length: 40.04", Step Angle: 68 degrees – Alternating–Tread Stairs – Design offers a shorter span than traditional steps. Features handrail on each side of unit, dual safety chain at top of stair and formed steel steps with raised surfaces for better traction. Rugged welded steel construction. Powder coated safety yellow finish. Ships knockdown for lower freight costs.

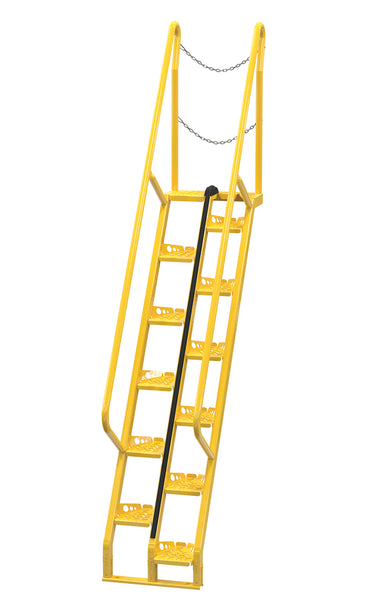

Manufacturer: Vestil, Manufacturer Part Number: ATS-7-56Number of Steps: 12, Top Step Height: 84", Length: 61.44", Step Angle: 56 degrees – Alternating–Tread Stairs – Design offers a shorter span than traditional steps. Features handrail on each side of unit, dual safety chain at top of stair and formed steel steps with raised surfaces for better traction. Rugged welded steel construction. Powder coated safety yellow finish. Ships knockdown for lower freight costs.

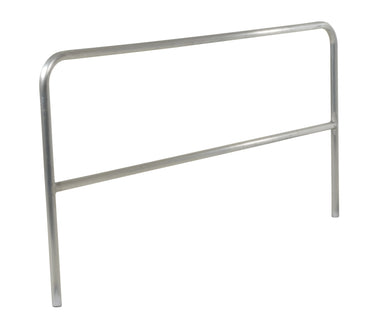

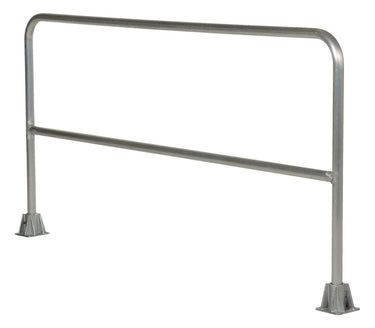

Manufacturer: Vestil, Manufacturer Part Number: ADKR-7Top Rail Height: 42", Mid–Rail Height: 21", Length: 84", Outside Diameter: 1–5/8" – Aluminum Pipe Safety Railing – Protect people from uneven walkways and mezzanine drop off's. These durable railings are made of schedule 40 pipe (1–5/8" O.D.). Handrails are 42" high with a 21" mid–rail. Mounting options include socket sleeves, cast steel base, barricade base, or cast steel sockets for convenient handrail removal. The cast steel sockets base, or cast steel sockets for convenient handrail removal. The cast steel sockets has two lag down holes for permanently mounting the railing. There are two open cavities to allow for 2" x 4" or 2" x 5" toe boards.

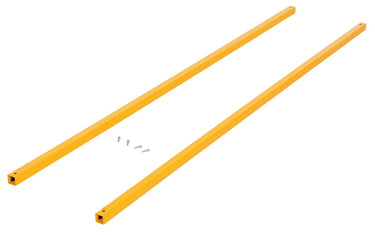

Manufacturer: Vestil, Manufacturer Part Number: CSEC-84Outside Diameter: 1–5/8", Length: 84" – Steel Square Safety Handrail – Optional Connection Tubing, sold in pairs.

Manufacturer: Vestil, Manufacturer Part Number: SQ-84Rigid Section without Toeboard – Square Tube (O.D.): 1–5/8", Overall Height: 42", Mid–rail Height: 21", Length: 84" – Steel Square Safety Handrail – An economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish.
