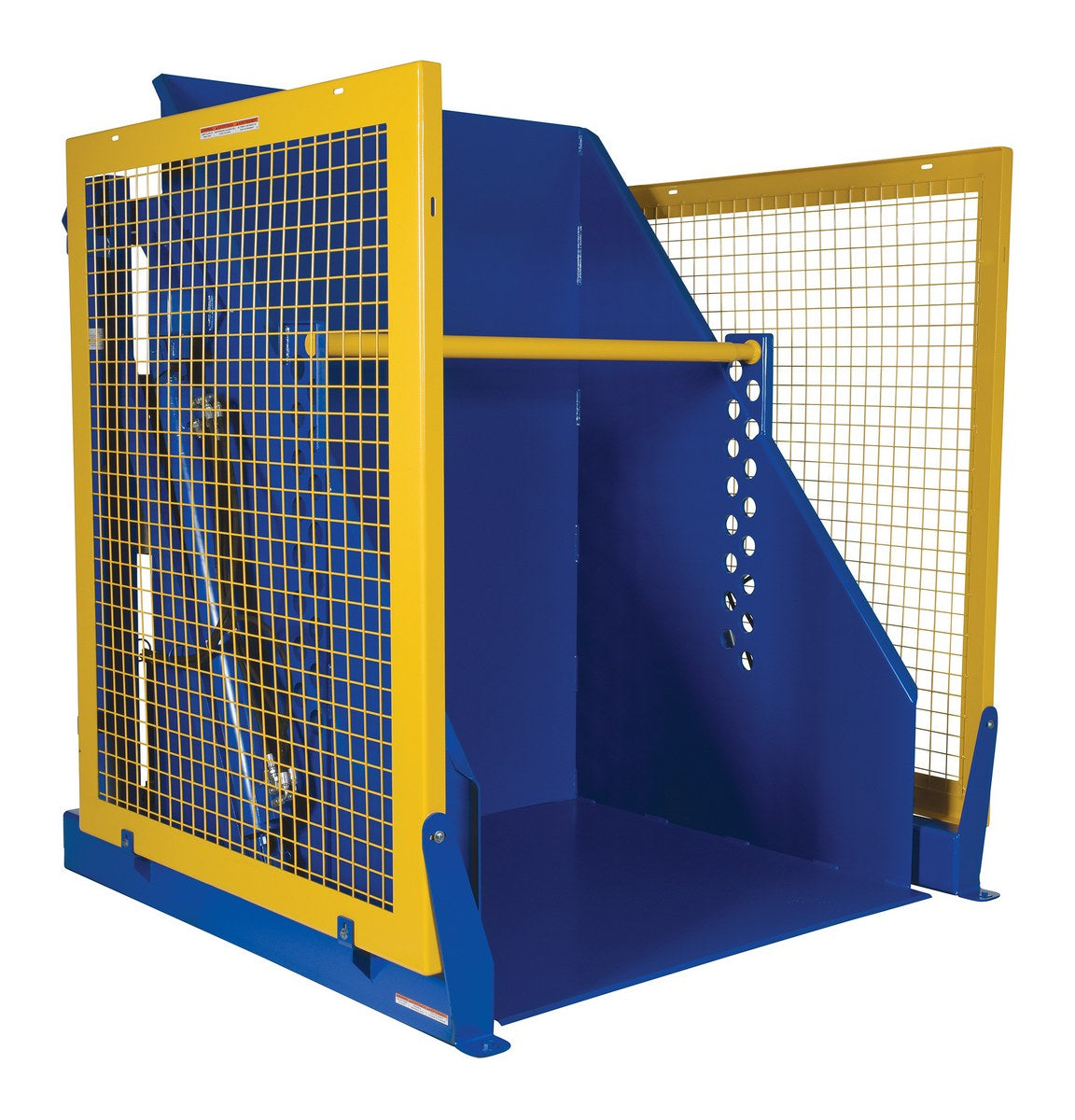

Vestil Industrial Hydraulic Box Dumper - 6000 lbs Capacity, 48" Dump Height - HBD-6-48
Authorized Vestil dealer
24/7 support
Request a quote
Vestil Industrial Hydraulic Box Dumper - 6000 lbs Capacity, 48" Dump Height - HBD-6-48 – MFG # HBD-6-48. We'll reply with price and freight, usually the same business day.
Download document
Enter your email and the PDF opens straight away. We'll only use it to help with this product.
Thank you
We've got your message and will be in touch shortly. Need it sooner? Call 800-474-5911.
Key features
Electric-Hydraulic Container Dumper for Forklift Material Handling and Controlled Load Discharge, 6,000 lb. Capacity with 48 in. Dump Height
| Dimensions & capacity | |
| Load capacity | 6000 lb |
|---|---|
| Overall length | 69 in |
| Overall width | 69 in |
| Overall height | 65 in |
| Unit weight | 1977 lb |
| Construction | |
| Material | Steel |
| Color | Blue / Yellow |
| Finish | Liquid Coat and Powder Coat |
| Assembly | Assembled |
| Category | Dumpers |
| Product family | Electric/Hydraulic Box Dumpers |
| Warranty & origin | |
| Warranty | 1 Year |
| Warranty type | Limited - Parts |
| Country of origin | United States |
| Shipping | |
| Ship method | LTL Palletized |
| Package length | 70 in |
| Package width | 70 in |
| Package height | 72 in |
| Shipping weight | 2147 lb |
| Freight class | 100 |
| NMFC | 133300 |
| Procurement codes | |
| MFG part number | HBD-6-48 |
| UNSPSC | 47131611 |
| HTS code | 8428.90.0390 |
| Sold as | EA-Each |
Electric-Hydraulic Container Dumper for Forklift Material Handling and Controlled Load Discharge, 6,000 lb. Capacity with 48 in. Dump Height
Capacity: 6,000 lbs., Dump Height: 48", Level Height: 65", Rotated Height: 128", Usable Chute: 51"W x 50"L, Overall: 67"W x 67"L – Hydraulic Box Dumper – Designed for controlled dumping of material from boxes, crates and other types of containers. Lowered height of only 1/2" allows for pallet truck loading and unloading. Retaining bar for use with 24", 30", and 36" high containers (contact factory for other hold–down bar heights). Maximum rotation is 135°. Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control standard. Protective mesh side screens included. Heavy–duty welded steel construction. Painted blue finish.
Vestil 1 year limited warranty
Covers defects in material and workmanship. Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders) are covered for 1 year; wearing parts (bearings, hoses, wheels, seals, brushes and batteries) for 90 days, from the date the product ships.
Not covered: labor, freight, misuse, negligent operation or repair, corrosive conditions, improper maintenance, shipping damage, accidents and unauthorized modifications. Read the full warranty (PDF)
Vestil – "We've got it!"
A family-owned American manufacturer of material handling and facility safety equipment since 1958, headquartered in Angola, Indiana. Vestil makes lift tables, pallet jacks, carts, work platforms, drum handling, ladders and protective barriers, and backs its equipment with a published limited warranty.
