Key features
Electric-Hydraulic Container Dumper for Forklift Material Handling and Controlled Load Discharge, 4,000 lb. Capacity with 60 in. Dump Height
| Dimensions & capacity | |
| Load capacity | 4000 lb |
|---|---|
| Overall length | 68.5 in |
| Overall width | 69 in |
| Overall height | 77 in |
| Unit weight | 1998 lb |
| Construction | |
| Material | Steel |
| Color | Blue / Yellow |
| Finish | Liquid Coat and Powder Coat |
| Assembly | Assembled |
| Category | Dumpers |
| Product family | Electric/Hydraulic Box Dumpers |
| Warranty & origin | |
| Warranty | 1 Year |
| Warranty type | Limited - Parts |
| Country of origin | United States |
| Shipping | |
| Ship method | LTL Palletized |
| Package length | 72 in |
| Package width | 70 in |
| Package height | 83 in |
| Shipping weight | 2130 lb |
| Freight class | 175 |
| NMFC | 133300 |
| Procurement codes | |
| MFG part number | HBD-4-60 |
| UNSPSC | 47131611 |
| HTS code | 8428.90.0390 |
| Sold as | EA-Each |
Electric-Hydraulic Container Dumper for Forklift Material Handling and Controlled Load Discharge, 4,000 lb. Capacity with 60 in. Dump Height

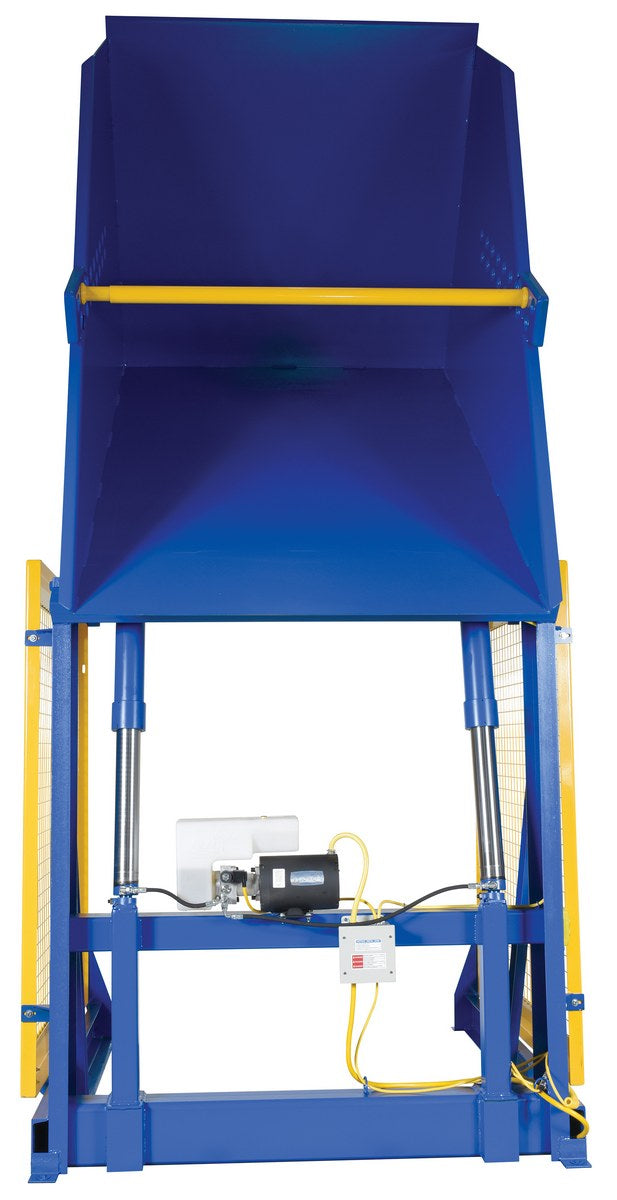

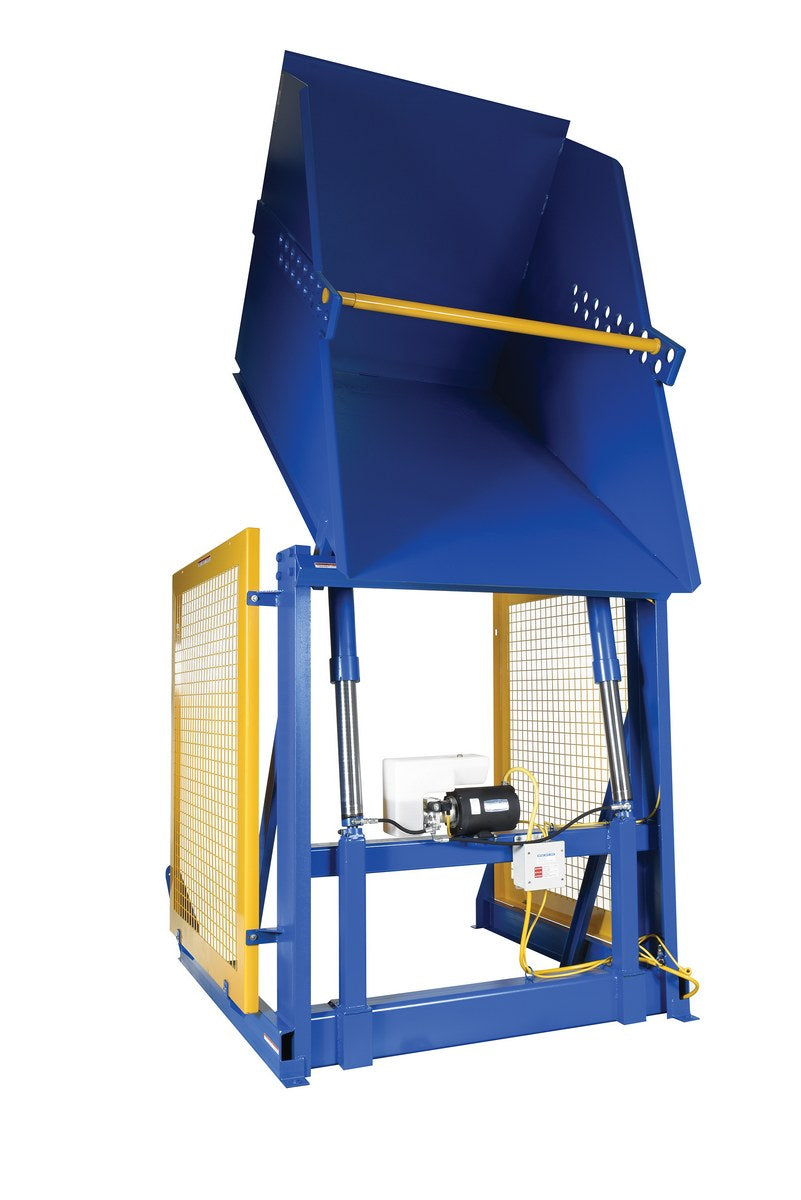

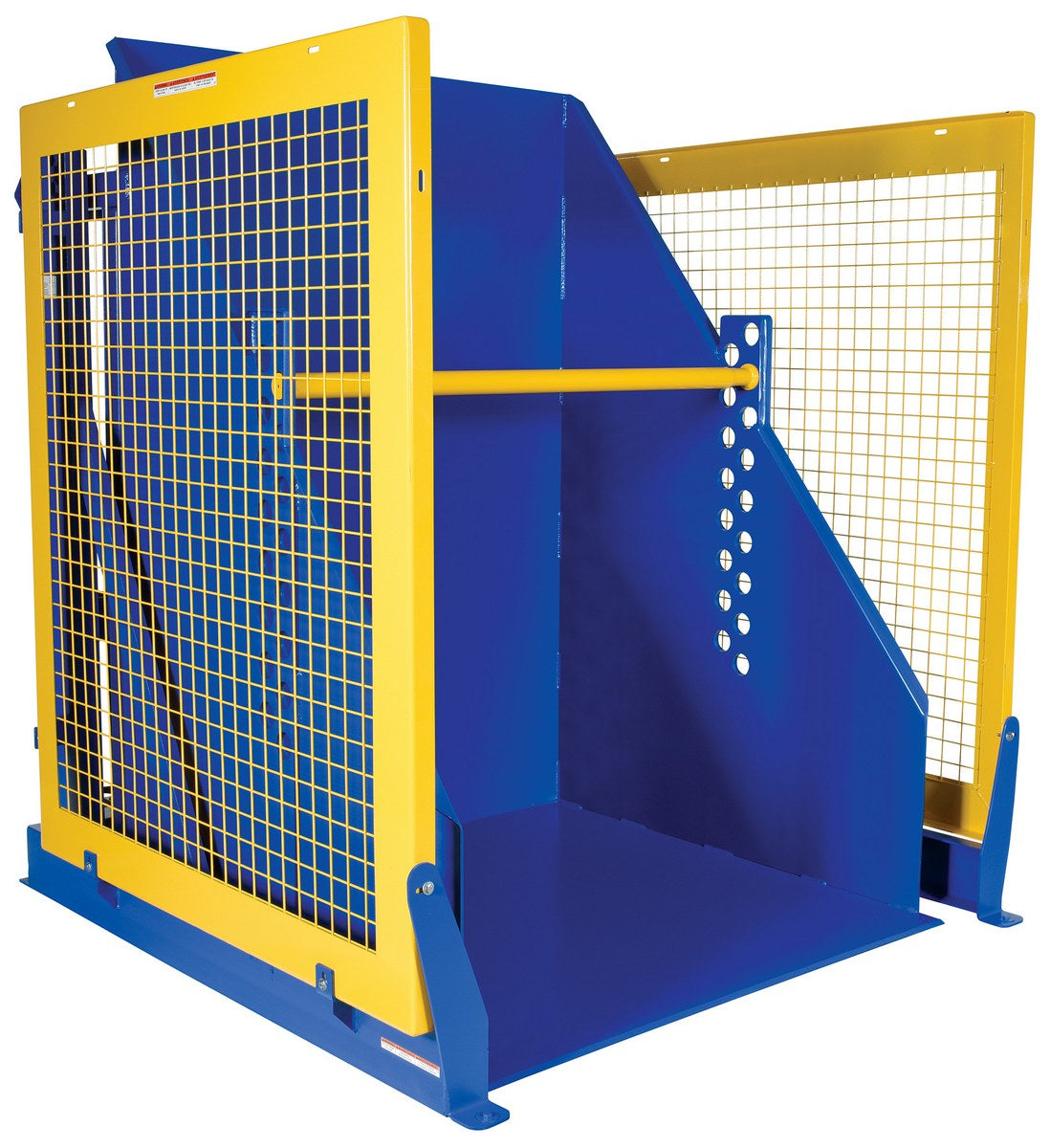

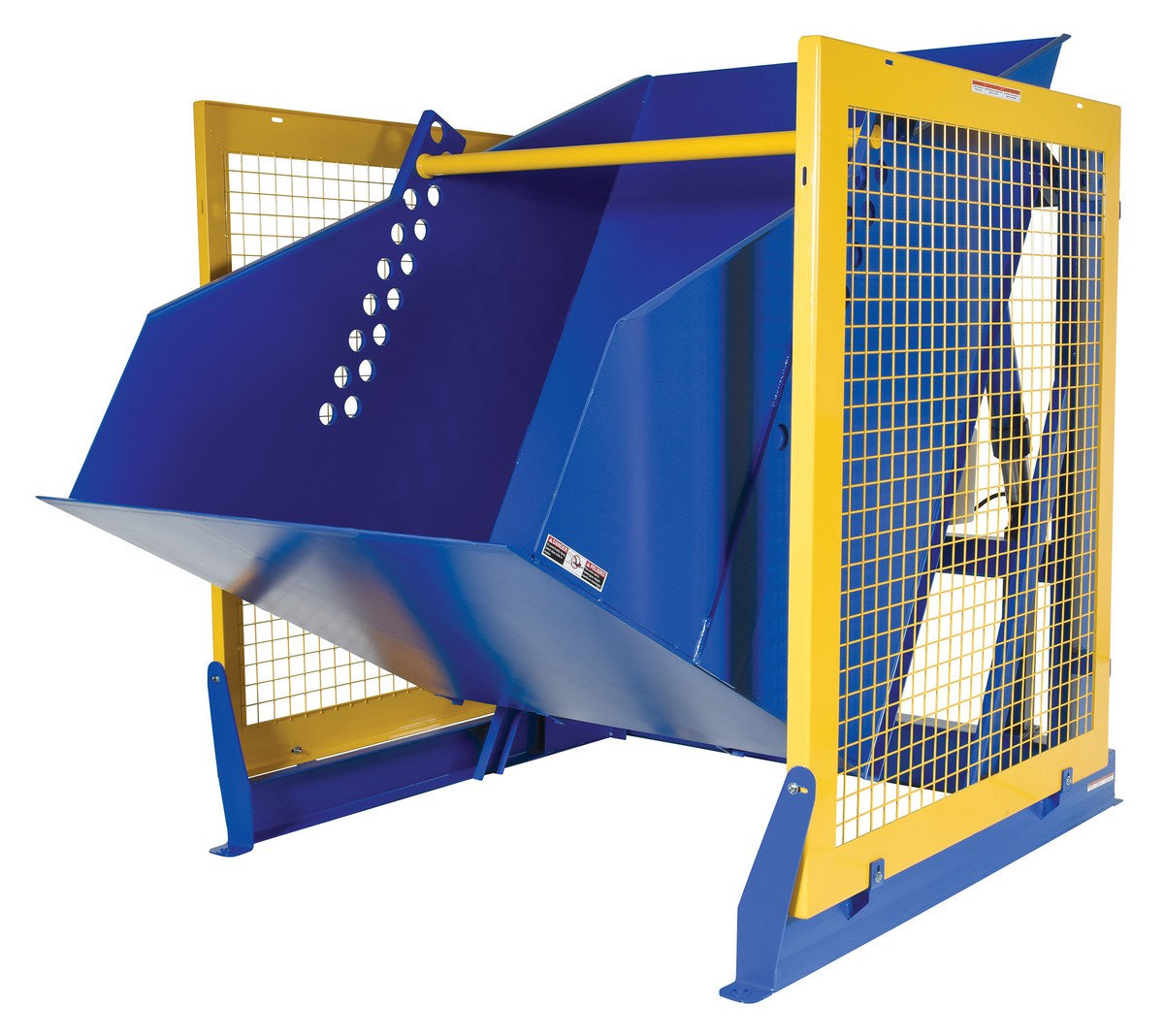

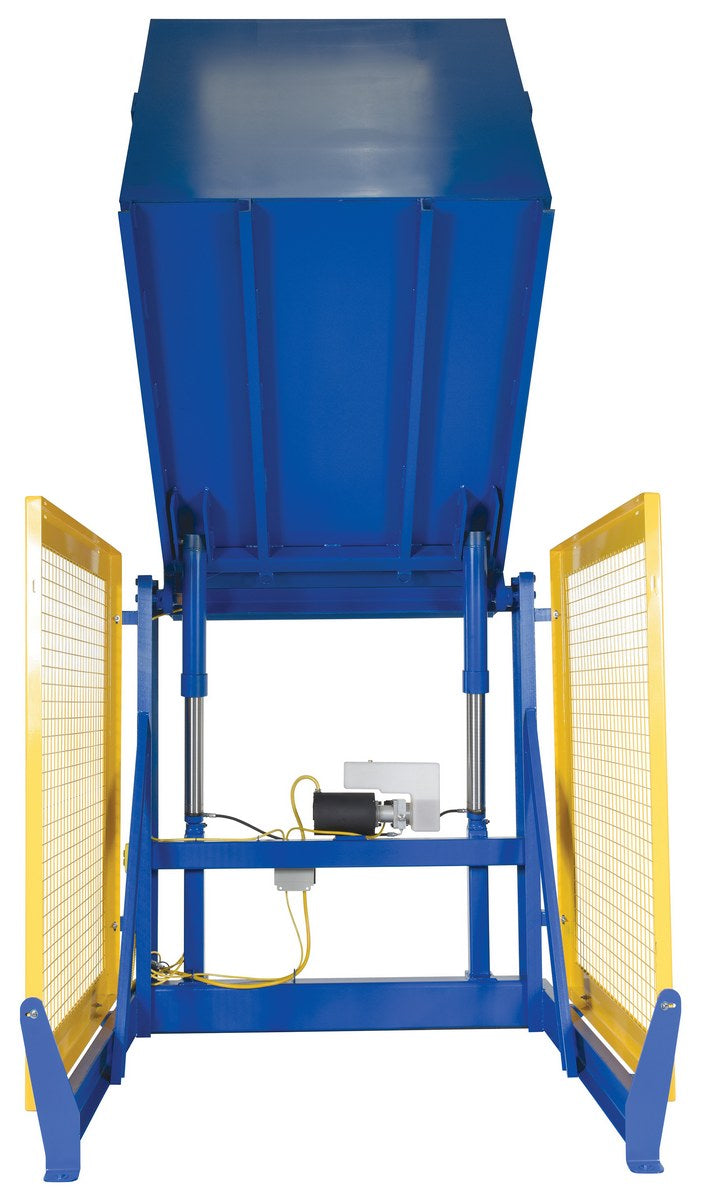

Capacity: 4,000 lbs., Dump Height: 60", Level Height: 77", Rotated Height: 148", Usable Chute: 51"W x 50"L, Overall: 67"W x 67"L Hydraulic Box Dumper Designed for controlled dumping of material from boxes, crates and other types of containers. Lowered height of only 1/2" allows for pallet truck loading and unloading. Retaining bar for use with 24", 30", and 36" high containers (contact factory for other holddown bar heights). Maximum rotation is 135 °. Chute reach is 10" when fully rotated. Internal 2HP power unit and hand held control standard. Protective mesh side screens included. Heavyduty welded steel construction. Painted blue finish.
Vestil 1 year limited warranty
Covers defects in material and workmanship. Original dynamic components (motors, hydraulic pumps, electronic controllers, switches and cylinders) are covered for 1 year; wearing parts (bearings, hoses, wheels, seals, brushes and batteries) for 90 days, from the date the product ships.
Not covered: labor, freight, misuse, negligent operation or repair, corrosive conditions, improper maintenance, shipping damage, accidents and unauthorized modifications. Read the full warranty (PDF)
