Dock Plates

Manufacturer: Vestil, Manufacturer Part Number: CAS-78Optional curb angle set. MFG Part# CAS-78

Manufacturer: Vestil, Manufacturer Part Number: EH-TLOptional electric interlock (EH dock leveler & Trailer Restraint). The trailer is sold separately.

Manufacturer: Vestil, Manufacturer Part Number: ESOptional emergency stop for the Mechanical Dockleveler.

Manufacturer: Vestil, Manufacturer Part Number: FIOptional under-deck foam insulation for docklevelers.

Manufacturer: Vestil, Manufacturer Part Number: SPO-RUOptional shallow pit option (minimum depth 24in). MFG Part# SPO-RU

Manufacturer: Vestil, Manufacturer Part Number: SPOOptional shallow pit option (minimum depth 24").

Manufacturer: Eagle, Manufacturer Part Number: 179748" Portable Poly Dockplate.

Manufacturer: Eagle, Manufacturer Part Number: 1796LIGHTWEIGHT – CONVENIENT – DURABLE Eagle's durable HDPE fixed poly dock plate is designed for use with two and four–wheeled dollies, hand trucks, carts and pallet trucks. It features a lightweight ergonomic design, 4" height differential capability, a raised non–slip surface, 1,000–lb. load capacity, beveled entry and exit edges, high–visibility yellow and integrated guardrails. Meets OSHA 1910.30(a) requirements. Lift–n–Lower ergonomic design helps reduce injuries and comp claims Molded–in handle eases raising and lowering Durable high–visibility yellow HDPE with UV inhibitors is ideal for outdoor use Rolling load capacity of 1,000 lbs. Optional Universal Installation Kit of coated steel installs easily on metal or concrete dock facings and features a 6' slide bar for easy truck centering or out–of–the–way storage SPECIFICATIONS1,000 lbs. Load Bearing Capacity - 20 lbs.1 dock plate26" L x 35" W x 5" H

Manufacturer: Eagle, Manufacturer Part Number: 1796-KITOptional Universal Installation Kit of coated steel installs easily on metal or concrete dock facings and features a 6' slide bar for easy truck centering or out–of–the–way storage.

Manufacturer: Eagle, Manufacturer Part Number: 1795LIGHTWEIGHT – CONVENIENT – DURABLE Eagle's durable HDPE portable poly dock plate is designed for use with two and four–wheeled dollies, hand trucks, carts and pallet trucks. It features a lightweight ergonomic design, 4" height differential capability, a raised non–slip surface, 750–lb. load capacity, beveled entry and exit edges, two carry handles, high–visibility yellow, integrated guardrails and powder–coated steel legs. Meets OSHA 1910.30(a) requirements.SPECIFICATIONS750 lbs. Load Bearing Capacity - 30 lbs.1 dock plate36" L x 35" W x 5" H

Manufacturer: Vestil, Manufacturer Part Number: APEdge–O–Dockleveler Optional Approach Plate – 1/4" Thick x 12"L x 96"W.

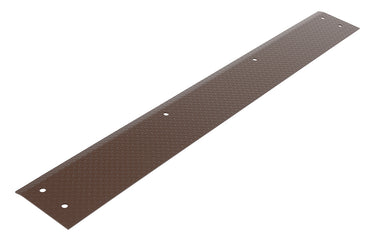

Manufacturer: Vestil, Manufacturer Part Number: AP-BEEdge–O–Docklevelers – Option – Approach Plate With Beveled Edge.

Manufacturer: Vestil, Manufacturer Part Number: FM-BARMechanical Edge–of–Dock Levelers Option – Pull Bar Actuation Handle for Mechanical Unit (New Style). ***This item by itself does not meet the manufacturer's (Vestil) $50.00 minimum order requirement. You would need to order enough quantity of this item or other Vestil items to reach the $50.00 mark to complete an order. Please contact us for assistance.***

Manufacturer: Vestil, Manufacturer Part Number: FM-HOOKMechanical Edge–of Dock Levelers Option – Pulling Hook – Pulling Hook for Mechanical Unit (Old Style). ***This item by itself does not meet the manufacturer's (Vestil) $50.00 minimum order requirement. You would need to order enough quantity of this item or other Vestil items to reach the $50.00 mark to complete an order. Please contact us for assistance.***

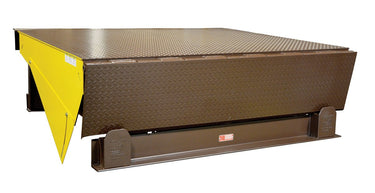

Manufacturer: Vestil, Manufacturer Part Number: EH-610-20The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the inraisein button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the inraisein button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers. MFG Part# EH-610-20

Manufacturer: Vestil, Manufacturer Part Number: EH-65-20The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the inraisein button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the inraisein button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers. MFG Part# EH-65-20

Manufacturer: Vestil, Manufacturer Part Number: EH-66-20The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the inraisein button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the inraisein button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers. MFG Part# EH-65-20

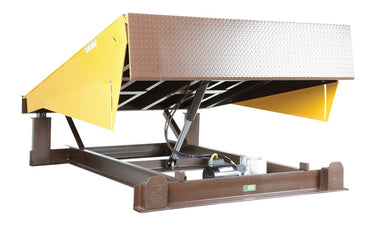

Manufacturer: Vestil, Manufacturer Part Number: EH-68-20The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the "raise" button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers.

Manufacturer: Vestil, Manufacturer Part Number: EH-710-20The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the inraisein button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the inraisein button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers. MFG Part# EH-710-20

Manufacturer: Vestil, Manufacturer Part Number: EH-75-20The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the inraisein button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the inraisein button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers. MFG Part# EH-75-20

Manufacturer: Vestil, Manufacturer Part Number: EH-76-20The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the inraisein button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the inraisein button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers. MFG Part# EH-75-20

Manufacturer: Vestil, Manufacturer Part Number: EH-78-20The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the inraisein button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the inraisein button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers. MFG Part# EH-75-20

Manufacturer: Vestil, Manufacturer Part Number: EH-610-25The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the inraisein button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the inraisein button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers. MFG Part# EH-610-20

Manufacturer: Vestil, Manufacturer Part Number: EH-66-25The Electric Hydraulic Dock Leveler is ideal for high usage dock areas. The hydraulic design is state of the art and consists of a single button operation. The operator pushes and holds the inraisein button which activates the hydraulic pump and raises the deck. When the deck reaches the raised position the lip automatically extends. The operator releases the inraisein button and the deck descends to rest on the trailer. The control box includes a red emergency stop button standard. When the truck pulls away, the deck descends to full down position, trips the limit switch and returns automatically to the level cross traffic position. Includes telescopic steel toe guards on both sides, flush with platform edge and includes two (2) laminated bumpers. MFG Part# EH-65-20
