Dock Boards

Manufacturer: Vestil, Manufacturer Part Number: TS-15-6048Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.SPECIFICATIONS15,000 lbs Capacity48" x 60" x 12.375" - 426 lbs.

Manufacturer: Vestil, Manufacturer Part Number: TS-10-7248Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.SPECIFICATIONS10,000 lbs Capacity48" x 72" x 12.313" - 426 lbs.

Manufacturer: Vestil, Manufacturer Part Number: TS-10-6048Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.SPECIFICATIONS10,000 lbs Capacity48" x 60" x 12.313" - 268 lbs.

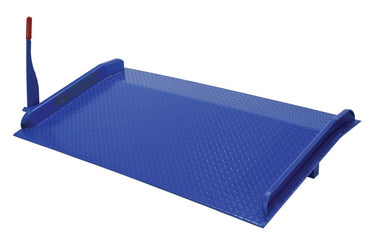

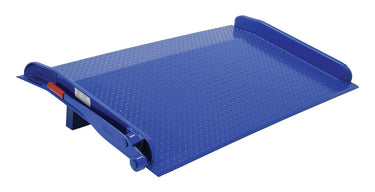

Manufacturer: Vestil, Manufacturer Part Number: TS-10-6036Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.SPECIFICATIONS10,000 lbs Capacity36" x 60" x 11.313" - 282 lbs.

Manufacturer: Vestil, Manufacturer Part Number: ALLDockboards Accessories: LeverliftSPECIFICATIONS4" x 4" x 16" - 10 lbs.

Manufacturer: Vestil, Manufacturer Part Number: BTA-20007830Uniform Capacity (lbs.): 20000, Height Difference (in.) at 8 degree/17%: 3, Height Difference (in.) at 11 degrees/19%: 4, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 71–3/4, Usable Length (in.) : 30 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-20007254Uniform Capacity (lbs.): 20000, Height Difference (in.) at 8 degree/17%: 6, Height Difference (in.) at 11 degrees/19%: 8–1/2, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 65–3/4, Usable Length (in.) : 54 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-20007842Uniform Capacity (lbs.): 20000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 71–3/4, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-20007266Uniform Capacity (lbs.): 20000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 65–3/4, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-15007866Uniform Capacity (lbs.): 15000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 71–3/4, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-15007842Uniform Capacity (lbs.): 15000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 71–3/4, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-15007266Uniform Capacity (lbs.): 15000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 65–3/4, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-15007242Uniform Capacity (lbs.): 15000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 65–3/4, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-12007866Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 71–1/2, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-12007854Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 6, Height Difference (in.) at 11 degrees/19%: 8–1/2, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 73–1/2, Usable Length (in.) : 54 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-12007842Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 73–1/2, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

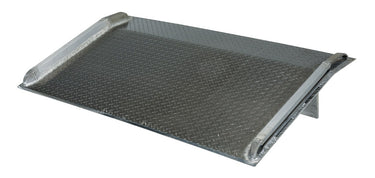

Manufacturer: Vestil, Manufacturer Part Number: BTA-12007830Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 3, Height Difference (in.) at 11 degrees/19%: 4, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 73–1/2, Usable Length (in.) : 30 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-12007266Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 65–3/4, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-12007254Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 6, Height Difference (in.) at 11 degrees/19%: 8–1/2, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 65–3/4, Usable Length (in.) : 54 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-12007242Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 65–3/4, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-11007872Uniform Capacity (lbs.): 11000, Height Difference (in.) at 8 degree/17%: 8–1/2, Height Difference (in.) at 11 degrees/19%: 12, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 71–3/4, Usable Length (in.) : 72 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

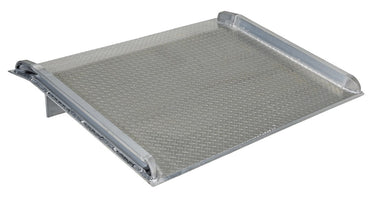

Manufacturer: Vestil, Manufacturer Part Number: BTA-11007866Uniform Capacity (lbs.): 11000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 71–3/4, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-11007848Uniform Capacity (lbs.): 11000, Height Difference (in.) at 8 degree/17%: 5–1/2, Height Difference (in.) at 11 degrees/19%: 7, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 73–1/2, Usable Length (in.) : 48 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-11007860Uniform Capacity (lbs.): 11000, Height Difference (in.) at 8 degree/17%: 7, Height Difference (in.) at 11 degrees/19%: 10, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 71–3/4, Usable Length (in.) : 60 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.
