Dock Boards

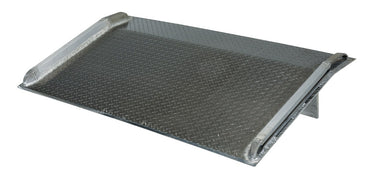

Manufacturer: Vestil, Manufacturer Part Number: BTA-08008442Uniform Capacity (lbs.): 8000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-08008454Uniform Capacity (lbs.): 8000, Height Difference (in.) at 8 degree/17%: 6, Height Difference (in.) at 11 degrees/19%: 8–1/2, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 54 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-07008466Uniform Capacity (lbs.): 7000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

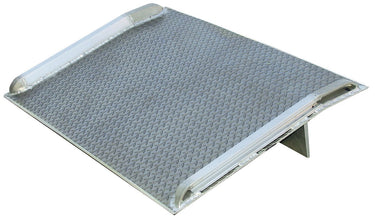

Manufacturer: Vestil, Manufacturer Part Number: BTA-07008460Uniform Capacity (lbs.): 7000, Height Difference (in.) at 8 degree/17%: 7, Height Difference (in.) at 11 degrees/19%: 10, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 60 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-07008454Uniform Capacity (lbs.): 7000, Height Difference (in.) at 8 degree/17%: 6, Height Difference (in.) at 11 degrees/19%: 8–1/2, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 54 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-07008442Uniform Capacity (lbs.): 7000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-07008436Uniform Capacity (lbs.): 7000, Height Difference (in.) at 8 degree/17%: 4, Height Difference (in.) at 11 degrees/19%: 5, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–3/4, Usable Length (in.) : 36 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-07008430Uniform Capacity (lbs.): 7000, Height Difference (in.) at 8 degree/17%: 3, Height Difference (in.) at 11 degrees/19%: 4, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–3/4, Usable Length (in.) : 30 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06008472Uniform Capacity (lbs.): 6000, Height Difference (in.) at 8 degree/17%: 8–1/2, Height Difference (in.) at 11 degrees/19%: 12, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 72 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06008466Uniform Capacity (lbs.): 6000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06008454Uniform Capacity (lbs.): 6000, Height Difference (in.) at 8 degree/17%: 6, Height Difference (in.) at 11 degrees/19%: 8–1/2, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 54 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06008442Uniform Capacity (lbs.): 6000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06008430Uniform Capacity (lbs.): 6000, Height Difference (in.) at 8 degree/17%: 3, Height Difference (in.) at 11 degrees/19%: 4, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–3/4, Usable Length (in.) : 30 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-05008466Uniform Capacity (lbs.): 5000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-05008454Uniform Capacity (lbs.): 5000, Height Difference (in.) at 8 degree/17%: 6, Height Difference (in.) at 11 degrees/19%: 8–1/2, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–1/2, Usable Length (in.) : 54 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-05008442Uniform Capacity (lbs.): 5000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–3/4, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-05008430Uniform Capacity (lbs.): 5000, Height Difference (in.) at 8 degree/17%: 3, Height Difference (in.) at 11 degrees/19%: 4, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 79–3/4, Usable Length (in.) : 30 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

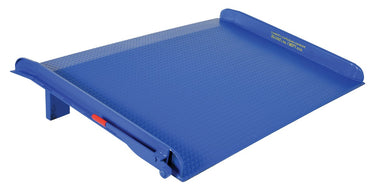

Manufacturer: Vestil, Manufacturer Part Number: TS-20-8460Capacity: 20,000 lbs., Overall Size: 84"W x 60"L, Height Difference: 10" – Steel Truck Dockboard – Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: TS-15-6060Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.SPECIFICATIONS15,000 lbs Capacity60" x 60" x 15.375" - 537 lbs.

Manufacturer: Vestil, Manufacturer Part Number: TS-20-7260Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.SPECIFICATIONS20,000 lbs Capacity60" x 72" x 16.438" - 723 lbs.

Manufacturer: Vestil, Manufacturer Part Number: TS-10-7236Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.SPECIFICATIONS10,000 lbs Capacity36" x 72" x 11.313" - 326 lbs.

Manufacturer: Vestil, Manufacturer Part Number: TS-15-7260Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.SPECIFICATIONS15,000 lbs Capacity60" x 72" x 15.375" - 597 lbs.

Manufacturer: Vestil, Manufacturer Part Number: TS-15-7248Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA. SPECIFICATIONS15,000 lbs Capacity48" x 72" x 12.375" - 496 lbs.

Manufacturer: Vestil, Manufacturer Part Number: TS-15-7236Constructed of high strength (55,000 psi) steel for long life. Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp movement and are uneven to allow the dockboard to sit canted for easier floor pickup by forklifts. Standard with leverlift for quick portability with fork truck. When using three wheeled fork trucks, select capacity +20% due to concentrated load on center of board. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops. Manufactured in compliance with OSHA.SPECIFICATIONS15,000 lbs Capacity36" x 72" x 11.375" - 379 lbs.
