EcoPolyBlend™ Drum Management System - Base Module Yellow

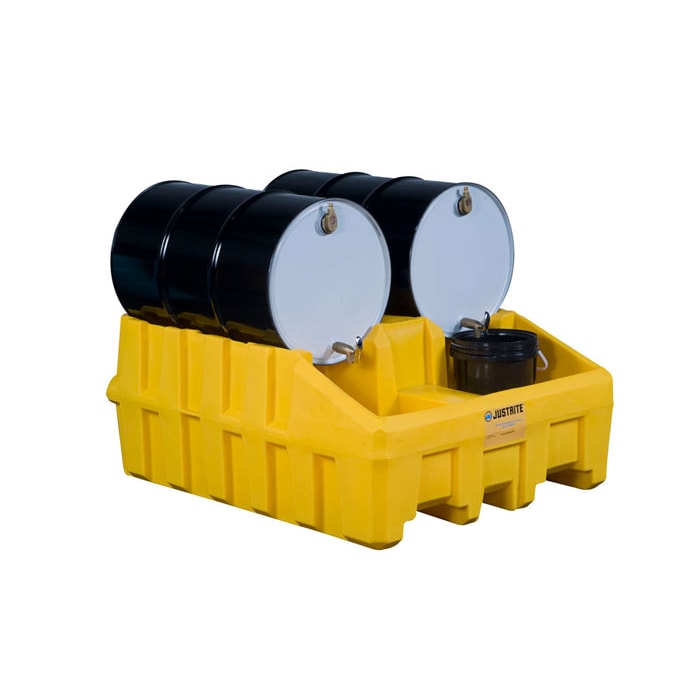

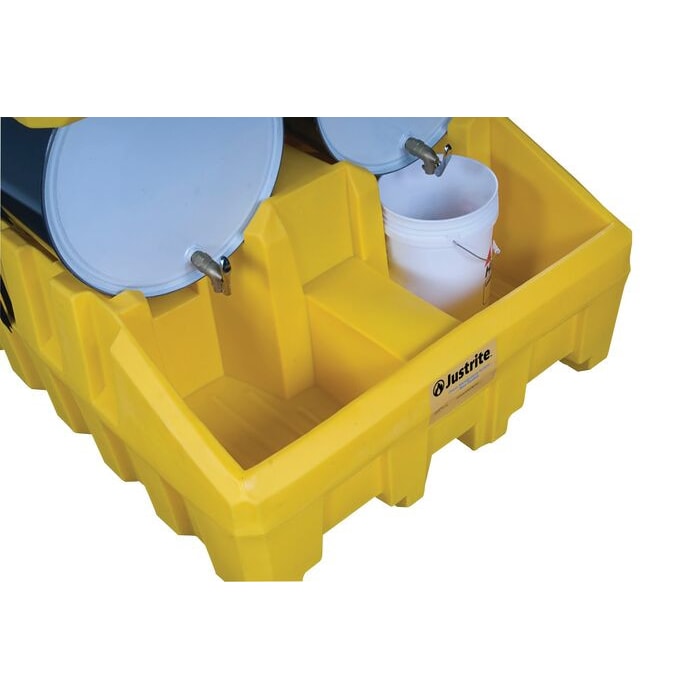

The Base Module holds two drums with a 3060-lb (1388-kg) total load capacity. Easily relocate the base module with a forklift when empty. The 66-gallon (250-L) open-view containment sump makes it easy to spot any spills for a quick cleanup.

The Drum Management System is a space-saving, stackable design that stores up to four 30- and/or 55-gallon (110- and/or 200-L) drums of Class 1B or 1C flammables and combustibles or nonhazardous liquids. 100% molded polyethylene construction provides maximum chemical resistance—preventing corrosion, deterioration and leaks. Molded-in drum lock-channels hold drums in place. The system consists of three parts: a base module, stack module and dispensing shelf — EACH PIECE SOLD SEPARATELY

Add Additional Storage and Functionality:

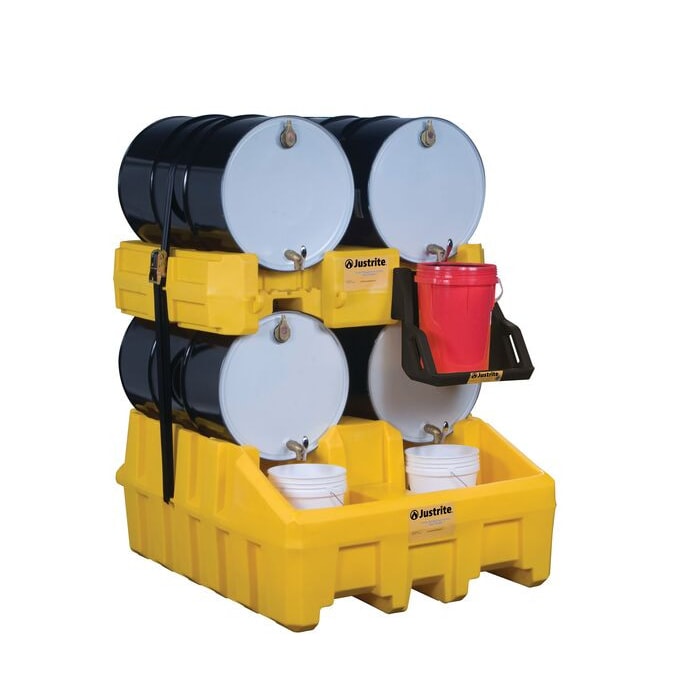

The Stack Module (Item # 28668) holds two additional drums to double the system capacity for a load of 1500 lb (680 kg). When storing both 30- and 55-gallon (110- and 200-L) drums, the smaller drums should be placed on the top of the stack module.

The Dispensing Shelf (Item # 28671) has a load capacity of 60 lb (27 kg), and mounts securely to the stack module for convenient dispensing from the upper level.

EPA, SPCC compliant and meets fire codes.

Load Bearing Capacity — (UDL) Uniformly distributed Load - 1250lbs. (567 kgs) per drum.

Base module capacity of 3060 Lbs. (includes weight of stack module and dispensing shelf each sold separately)

Note: When storing different sized drums, always place two smaller drums on top of two larger drums.

SPECIFICATIONS
3,060 lbs. Load Bearing Capacity, 66 gal. Sump Capacity - 138 lbs.
1 base module
59" D x 49" W x 26" H
