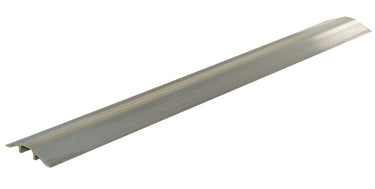

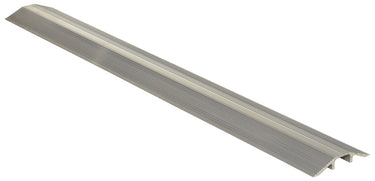

Manufacturer: Vestil, Manufacturer Part Number: LHCR-72Overall Size: 9–1/8"W x 1–1/2"H, Length: 72", Usable Span: 2–1/2"W x 1–1/4"H, Single–Wheel Capacity: 10,000 lbs. – Extruded Aluminum Hose & Cable Bridge – Protects airlines, electrical cords and computer cables from damage by fork trucks, carts, and personnel. These ramps have serrated edges for maximum traction and are lightweight for easy portability. Contact factory for special lengths up to 25 feet.

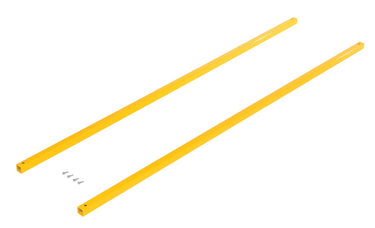

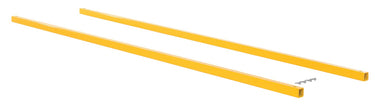

Manufacturer: Vestil, Manufacturer Part Number: CSEC-72Outside Diameter: 1–5/8", Length: 72" – Optional Connection Tubing for Steel Square Safety Handrails.

Manufacturer: Vestil, Manufacturer Part Number: SQ-72Square Tube (O.D.): 1–5/8", Overall Height: 42", Mid–Rail Height: 21", Length: 72" – Steel Square Safety Handrails – An economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish. Available with or without toeboards as application requires.

Manufacturer: Vestil, Manufacturer Part Number: SQ-72-TBSquare Tube (O.D.): 1–5/8", Overall Height: 42", Mid–Rail Height: 21", Length: 72" – Steel Square Safety Handrails – An economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish. Available with or without toeboards as application requires.

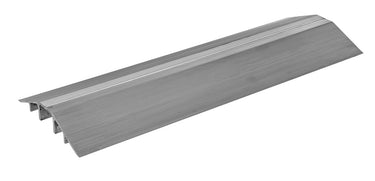

Manufacturer: Vestil, Manufacturer Part Number: XHCR-72Usable Span Width (in.): 4–1/2, Single Wheel Uniform Capacity (lbs.): 10,000, Material: Aluminum – The Extruded Aluminum Hose and Cable Bridge is designed to protect air lines, electrical cords and computer cables from damage by fork trucks, carts, and personnel. This ramp has serrated edges for maximum traction and are lightweight for easy portability.

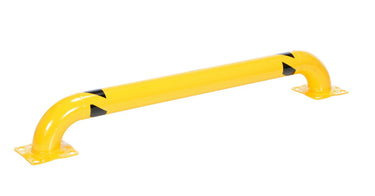

Manufacturer: Vestil, Manufacturer Part Number: LPRO-72-9-4Finish: Yellow Powder Coat, Base Plate Width (in.): 8, Base Plate Length (in.): 8, Guard Diameter (in.): 4–1/2, Construction: Steel, Finish: Powder Coat Yellow, Bolt Hole (quantity) : 8 – This Low Profile Rack Guard may be used either indoors or outdoors to protect valuable pallet racking, machinery, and personnel. Two (2) base plates with four (4) pre–drilled mounting holes in each plate.

Manufacturer: Vestil, Manufacturer Part Number: PE-1572-36Capacity: 15,000 lbs., Operation: Electric, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Ramping length is 36". A steel dock edge is required for proper installation. Edge–O–Dock is easy to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend and rest on the truck bed. The unit is operated by a 3/4 HP, 110/220 Volt, single phase motor prewired to 110 V. Unit comes complete with motor, pump, control box, cylinder, lines and oil.

Manufacturer: Vestil, Manufacturer Part Number: PE-2072Capacity: 20,000 lbs., Operation: Electric, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping length is 27". A steel dock edge is required for proper installation. Edge–O–Dock is easy to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend and rest on the truck bed. The unit is operated by a 3/4 HP, 110/220 Volt, single phase motor prewired to 110 V. Unit comes complete with motor, pump, control box, cylinder, lines and oil.

Manufacturer: Vestil, Manufacturer Part Number: PE-2572Capacity: 25,000 lbs., Operation: Electric, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping length is 27". A steel dock edge is required for proper installation. Edge–O–Dock is easy to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend and rest on the truck bed. The unit is operated by a 3/4 HP, 110/220 Volt, single phase motor prewired to 110 V. Unit comes complete with motor, pump, control box, cylinder, lines and oil.

Manufacturer: Vestil, Manufacturer Part Number: PE-2572-36Capacity: 25,000 lbs., Operation: Electric, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Ramping length is 36". A steel dock edge is required for proper installation. Edge–O–Dock is easy to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend and rest on the truck bed. The unit is operated by a 3/4 HP, 110/220 Volt, single phase motor prewired to 110 V. Unit comes complete with motor, pump, control box, cylinder, lines and oil.

Manufacturer: Vestil, Manufacturer Part Number: PE-3072Capacity: 30,000 lbs., Operation: Electric, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping length is 27". A steel dock edge is required for proper installation. Edge–O–Dock is easy to operate. After the truck is backed against the dock, push and hold the control button. The leveler raises and the lip will extend and rest on the truck bed. The unit is operated by a 3/4 HP, 110/220 Volt, single phase motor prewired to 110 V. Unit comes complete with motor, pump, control box, cylinder, lines and oil.

Manufacturer: Vestil, Manufacturer Part Number: PP-1572-36Capacity: 15,000 lbs., Operation: Hand Pump, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Ramping length 36". A steel dock edge is required for proper installation. Used to lift the leveler and extend the lip. The operator rotates the relief valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall–mount brackets, cylinder, 15 feet hydraulic line and oil.

Manufacturer: Vestil, Manufacturer Part Number: PP-2072Capacity: 20,000 lbs., Operation: Hand Pump, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping length is 27". A steel dock edge is required for proper installation. Used to lift the leveler and extend the lip. The operator rotates the relief valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall–mount brackets, cylinder, 15 feet hydraulic line and oil.

Manufacturer: Vestil, Manufacturer Part Number: PP-2572Capacity: 25,000 lbs., Operation: Hand Pump, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping length is 27". A steel dock edge is required for proper installation. Used to lift the leveler and extend the lip. The operator rotates the relief valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall–mount brackets, cylinder, 15 feet hydraulic line and oil.

Manufacturer: Vestil, Manufacturer Part Number: PP-2572-36Capacity: 25,000 lbs., Operation: Hand Pump, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Ramping length 36". A steel dock edge is required for proper installation. Used to lift the leveler and extend the lip. The operator rotates the relief valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall–mount brackets, cylinder, 15 feet hydraulic line and oil.

Manufacturer: Vestil, Manufacturer Part Number: PP-3072Capacity: 30,000 lbs., Operation: Hand Pump, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping length is 27". A steel dock edge is required for proper installation. Used to lift the leveler and extend the lip. The operator rotates the relief valve allowing the deck to descend down and rest upon the trailer. Unit comes complete with hand pump, wall–mount brackets, cylinder, 15 feet hydraulic line and oil.

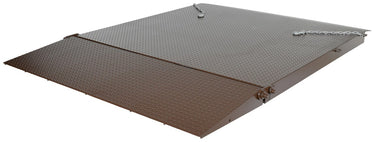

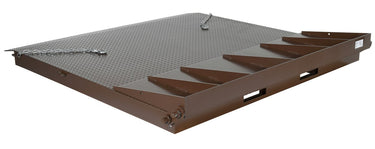

Manufacturer: Vestil, Manufacturer Part Number: SCR-72Uniform Capacity (lbs.): 15000 – The Heavy Duty Steel Container Ramp facilitates easy loading/unloading of shipping containers when placed on ground level. Hinged flip–over bridge allows for easy transportation and compact storage. Tapered lip provides smooth transition into container at various heights. Built in fork pockets in base for convenient fork truck positioning.

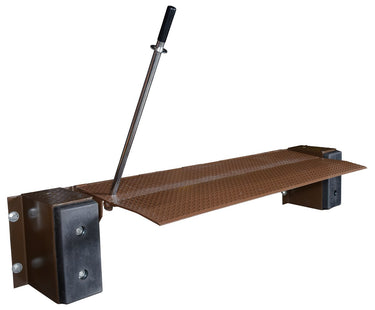

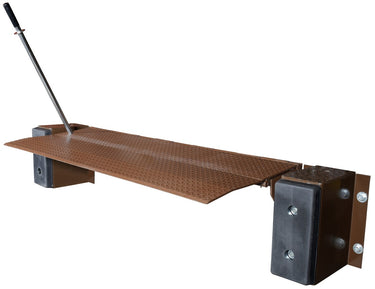

Manufacturer: Vestil, Manufacturer Part Number: FM-2572Capacity: 25,000 lbs., Operation: Mechanical, Usable Width: 72" – Edge–O–Docklevelers – Permanently attaches to face of dock. Recommended for docks at least 48" high. Each unit provides a service range of 5" up and 5" down. When the trailer departs the lip drops automatically behind the face of the bumpers. Concrete recess is not required. Complete with 2" x 8" x 18" bumpers and installation instructions. Standard ramping length is 27". A steel dock edge is required for proper installation. The Mechanical Edge–O–Dock is operated by placing the actuation handle into the pocket of the inner lip and pulling down toward the floor. The operator then pushes the handle forward until the lip rests on the truck bed. As the trailer departs, the lip retracts behind the bumper face automatically.

Manufacturer: Vestil, Manufacturer Part Number: BTA-11007230Uniform Capacity (lbs.): 11000, Height Difference (in.) at 8 degree/17%: 3, Height Difference (in.) at 11 degrees/19%: 4, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 67–1/2, Usable Length (in.) : 30 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-07007230Uniform Capacity (lbs.): 7000, Height Difference (in.) at 8 degree/17%: 3, Height Difference (in.) at 11 degrees/19%: 4, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 67–3/4, Usable Length (in.) : 30 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

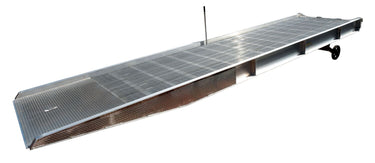

Manufacturer: Vestil, Manufacturer Part Number: AY-167230Capacity: 16,000 lbs., Overall Width: 72", Usable Width: 66", Length: 30' – Aluminum Yard Ramp With Aluminum Grating – Portable Aluminum Yard Ramps have a unique design that allows one person to position, raise/lower, and then load/unload trailers from ground level. Available with steel or rust resistant aluminum grating. Details: 18" x 5" mold–on–rubber tires (standard), 4" curb height, Flow Control Valve, Service Height Range is 37" to 63", Safety anchor chains. Rubber shock absorbers, Hand pump hydraulic lift, Fork towbar (standard).

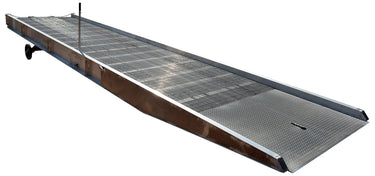

Manufacturer: Vestil, Manufacturer Part Number: AY-257230Capacity: 25,000 lbs., Overall Width: 72", Usable Width: 66", Length: 30' – Aluminum Yard Ramp With Aluminum Grating – Portable Aluminum Yard Ramps have a unique design that allows one person to position, raise/lower, and then load/unload trailers from ground level. Available with steel or rust resistant aluminum grating. Details: 18" x 5" mold–on–rubber tires (standard), 4" curb height, Flow Control Valve, Service Height Range is 37" to 63", Safety anchor chains. Rubber shock absorbers, Hand pump hydraulic lift, Fork towbar (standard).

Manufacturer: Vestil, Manufacturer Part Number: AY-307230Capacity: 30,000 lbs., Overall Width: 72", Usable Width: 66", Length: 30' – Aluminum Yard Ramp With Aluminum Grating – Portable Aluminum Yard Ramps have a unique design that allows one person to position, raise/lower, and then load/unload trailers from ground level. Available with steel or rust resistant aluminum grating. Details: 18" x 5" mold–on–rubber tires (standard), 4" curb height, Flow Control Valve, Service Height Range is 37" to 63", Safety anchor chains. Rubber shock absorbers, Hand pump hydraulic lift, Fork towbar (standard).

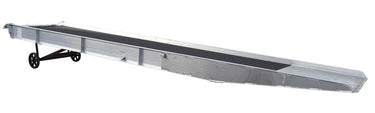

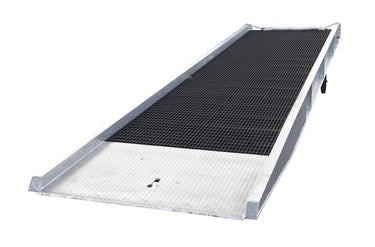

Manufacturer: Vestil, Manufacturer Part Number: SY-167230Capacity: 16,000 lbs., Overall Width: 72", Usable Width: 66", Length: 30 feet – Aluminum Yard Ramps with Steel Grating – Portable Aluminum Yard Ramps have a unique design that allows one person to position, raise/lower, and then load/unload trailers from ground level. Available with steel or rust resistant aluminum grating. Details: 18" x 5" mold–on–rubber tires (standard), 4" curb height, Flow Control Valve, Service Height Range is 37" to 63", Safety anchor chains. Rubber shock absorbers, Hand pump hydraulic lift, Fork towbar (standard).
