Vestil

Manufacturer: Vestil, Manufacturer Part Number: BTA-09006672Uniform Capacity (lbs.): 9000, Height Difference (in.) at 8 degree/17%: 8–1/2, Height Difference (in.) at 11 degrees/19%: 12, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 61–1/2, Usable Length (in.) : 72 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: EHLTG-4450-4-36Capacity: 4,000 lbs., Overall Size: 67"L x 56"W x 8"H, Platform Size: 44"W x 50"L, Raised Height: 36", Lowered Height: " – Ground Lift Scissor Table – Designed for use when fork trucks are not available. Pallets can be loaded onto table with pallet trucks and raised to an ergonomic working height. Safety features include; front–side electric toe guard to protect pinch points during lowering of the table velocity fuse to maintain platform height regardless of hydraulic pressure, foot control, maintenance prop, and upper travel limit switch to top table at maximum height reducing motor wear. 2HP, 208–230/460V, 3–phase, 60 Hz totally enclosed motor is remote and can be located up to eight feet away from table. 3000psi hydraulic components rating. Optional accordion skirting available.

Manufacturer: Vestil, Manufacturer Part Number: EHLTG-4470-2-48Capacity: 2,000 lbs., Overall Size: 67"L x 78"W x 10"H, Platform Size: 44"W x 70"L, Raised Height: 48", Lowered Height: " – Ground Lift Scissor Table – Designed for use when fork trucks are not available. Pallets can be loaded onto table with pallet trucks and raised to an ergonomic working height. Safety features include; front–side electric toe guard to protect pinch points during lowering of the table velocity fuse to maintain platform height regardless of hydraulic pressure, foot control, maintenance prop, and upper travel limit switch to top table at maximum height reducing motor wear. 2HP, 208–230/460V, 3–phase, 60 Hz totally enclosed motor is remote and can be located up to eight feet away from table. 3000psi hydraulic components rating. Optional accordion skirting available.

Manufacturer: Vestil, Manufacturer Part Number: EHLTG-4470-4-48Capacity: 4,000 lbs., Overall Size: 67"L x 78"W x 10"H, Platform Size: 44"W x 70"L, Raised Height: 48", Lowered Height: " – Ground Lift Scissor Table – Designed for use when fork trucks are not available. Pallets can be loaded onto table with pallet trucks and raised to an ergonomic working height. Safety features include; front–side electric toe guard to protect pinch points during lowering of the table velocity fuse to maintain platform height regardless of hydraulic pressure, foot control, maintenance prop, and upper travel limit switch to top table at maximum height reducing motor wear. 2HP, 208–230/460V, 3–phase, 60 Hz totally enclosed motor is remote and can be located up to eight feet away from table. 3000psi hydraulic components rating. Optional accordion skirting available.

Manufacturer: Vestil, Manufacturer Part Number: TOE-B-72-NOverall Height: 4", Length: 67–1/2" – Steel Square Safety Handrail – Optional 4" High Toeboard.

Manufacturer: Vestil, Manufacturer Part Number: ATS-11-68Uniform Capacity (pounds): 350, Number of Steps: 17, Top Step Height (in.): 132, Step Angle (degrees): 68, Safety Chain (in.): 3/16, Top Step Depth (in.): 9–1/2, Top Step Length (in.): 23–1/4, Step (excluding top step) Depth (in.): 10–1/2, Step (excluding top step) Length (in.): 9, Span Length (in.): 59–1/2, Construction: Steel, Finish: Powder Coat Safety – Yellow – Alternating–Tread Stair design offers a shorter span than traditional steps. Features handrail on each side of unit, dual safety chain at the top of the stair and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt–on handrails.

Manufacturer: Vestil, Manufacturer Part Number: ATS-12-68Uniform Capacity (pounds): 350, Number of Steps: 20, Top Step Height (in.): 144, Step Angle (degrees): 68, Safety Chain (in.): 3/16, Top Step Depth (in.): 9–1/2, Top Step Length (in.): 23–1/4, Step (excluding top step) Depth (in.): 10–1/2, Step (excluding top step) Length (in.): 9, Span Length (in.): 64–1/2, Construction: Steel, Finish: Powder Coat Safety – Yellow – Alternating–Tread Stair design offers a shorter span than traditional steps. Features handrail on each side of unit, dual safety chain at the top of the stair and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt–on handrails.

Manufacturer: Vestil, Manufacturer Part Number: ATS-13-68Uniform Capacity (pounds): 350, Number of Steps: 21, Top Step Height (in.): 156, Step Angle (degrees): 68, Safety Chain (in.): 3/16, Top Step Depth (in.): 9–1/2, Top Step Length (in.): 23–1/4, Step (excluding top step) Depth (in.): 10–1/2, Step (excluding top step) Length (in.): 9, Span Length (in.): 69–1/2, Construction: Steel, Finish: Powder Coat Safety – Yellow – Alternating–Tread Stair design offers a shorter span than traditional steps. This alternating stair ladder features a handrail on each side of the unit, dual safety chains at the top of the stair and formed steel steps with raised surfaces for better traction. This alternating thread stair has a welded steel construction with bolt–on handrails.

Manufacturer: Vestil, Manufacturer Part Number: ATS-14-68Uniform Capacity (pounds): 350, Number of Steps: 24, Top Step Height (in.): 168, Step Angle (degrees): 68, Safety Chain (in.): 3/16, Top Step Depth (in.): 9–1/2, Top Step Length (in.): 23–1/4, Step (excluding top step) Depth (in.): 10–1/2, Step (excluding top step) Length (in.): 9, Span Length (in.): 74, Construction: Steel, Finish: Powder Coat Safety – Yellow – Alternating–Tread Stair design offers a shorter span than traditional steps. Features handrail on each side of unit, dual safety chain at the top of the stair and formed steel steps with raised surfaces for better traction. Welded steel construction with bolt–on handrails.

Manufacturer: Vestil, Manufacturer Part Number: SY-CRB6Optional six (6) inch curb height for the yard ramp.

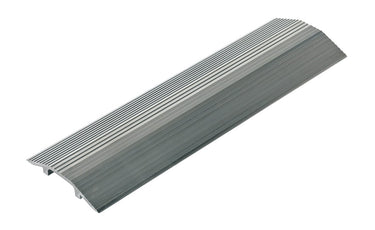

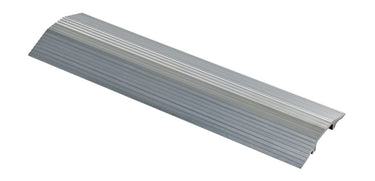

Manufacturer: Vestil, Manufacturer Part Number: HCR-24Overall Size: 7"W x 1–1/8"H, Length: 24", Usable Span: 2–1/2"W x 3/4"H, Single Wheel Capacity: 10,000 lbs. – Extruded Aluminum Hose & Cable Bridge – Protect airlines, electrical cords and computer cables from damage by fork trucks, carts, and personnel. These ramps have serrated edges for maximum traction and are lightweight for easy portability. Contact factory for special lengths up to 25 feet.

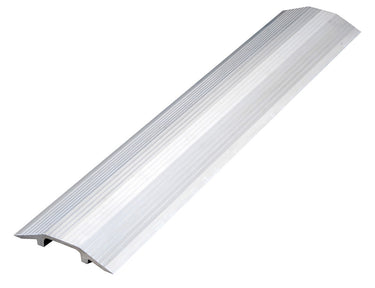

Manufacturer: Vestil, Manufacturer Part Number: HCR-36Overall Size: 7"W x 1–1/8"H, Length: 36", Usable Span: 2–1/2"W x 3/4"H, Single Wheel Capacity: 10,000 lbs. – Extruded Aluminum Hose & Cable Bridge – Protect airlines, electrical cords and computer cables from damage by fork trucks, carts, and personnel. These ramps have serrated edges for maximum traction and are lightweight for easy portability. Contact factory for special lengths up to 25 feet.

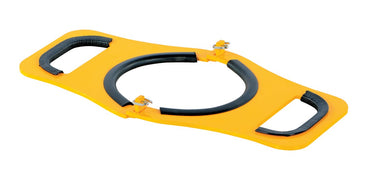

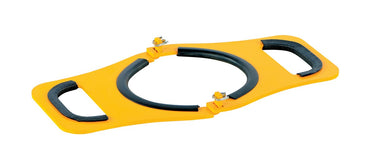

Manufacturer: Vestil, Manufacturer Part Number: CYL-M-7Lifting Aid Handles Cylinder Diameter (in.): 7, Construction: Steel, Finish: Powder Coat Yellow, Folded Degree : 105, Maximum Cylinder Diameter (in.): 7 – This Manual Cylinder Lifter is easy to use and allows for safely lifting cylinders. The pivoting design grabs and squeezes the cylinder when lifted. The cylinder lifting device has a rubber–coated center and handle holes. Steel construction with a powder–coat yellow finish.

Manufacturer: Vestil, Manufacturer Part Number: VPFG-1270Usable Width (Feet): 10 to 12, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VPFG-1470Usable Width (Feet): 12 to 14, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VPFG-1670Usable Width (Feet): 14 to 16, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VPFG-1870Usable Width (Feet): 16 to 18, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VPFG-2070Usable Width (Feet): 18 to 20, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VPFG-870Usable Width (Feet): 6 to 8, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VPFG-1070Usable Width (Feet): 8 to 10, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VSSG-470Usable Width (Feet): 3 to 4, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VSSG-570Usable Width (Feet): 4 to 5, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VSSG-670Usable Width (Feet): 5 to 6, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.

Manufacturer: Vestil, Manufacturer Part Number: VSSG-770Usable Width (Feet): 6 to 7, Collapsed Height (Feet): 7, In Use Height (Feet): 6 1/2 – Galvanized Folding Gate – Secure outside access during the day and add security at night with heavy–duty 15 gauge steel folding gates. Durable 3" rubber casters allow operator to quickly and fully retract gate when not in use. Center drop pin rests in pre–drilled hole to secure gate when extended. Easy installation! Lock is located on right side on single gates. Galvanized for durability. Constructed of steel U–channels riveted back to back using aircraft quality rivets and heavy–duty 1–1/2" x 1–1/2" vertical angles. Installation hardware included. Contact factory for additional sizes.
