Manufacturer: Haws, Manufacturer Part Number: 1001.8PModel 1109.8P ADA vandal-resistant electric wall-mounted water cooler and bottle filler shall include an 18-gauge Type 304 Stainless Steel satin-finish basin, 14 gauge bottle filler bracket, 16 gauge galvanized steel in-wall mounting frame with welded-in heavy-duty 10 gauge mounting plate, vandal-resistant push button operated stainless steel valves with front accessible cartridge and flow adjustment, in-wall 3/16" thick steel mounting plate for the bottle filler, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plates, satin stainless steel back panel and louvered intrusion-proof grill, and 1-1/4” NPT trap. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. Haws electric water coolers comply with ARI Standard 1010 and ANSI A117.1, and are listed by Underwriter Laboratories to U.S. and Canadian standards. FOR INDOOR USE ONLY Product Includes: • 1109.8: Chilled Single Drinking Fountain • 1920: Bottle Filler • HCR8: Remote Chiller • 6469: Drip Tray • BP15: Back Panel • 67oo: Mounting Plate • MTGFR.SM: Mounting Frame

Manufacturer: Haws, Manufacturer Part Number: 1109.8PModel 1109.8P ADA vandal-resistant electric wall-mounted water cooler and bottle filler shall include an 18-gauge Type 304 Stainless Steel satin-finish basin, 14 gauge bottle filler bracket, 16 gauge galvanized steel in-wall mounting frame with welded-in heavy-duty 10 gauge mounting plate, vandal-resistant push button operated stainless steel valves with front accessible cartridge and flow adjustment, in-wall 3/16" thick steel mounting plate for the bottle filler, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plates, satin stainless steel back panel and louvered intrusion-proof grill, and 1-1/4” NPT trap. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. Haws electric water coolers comply with ARI Standard 1010 and ANSI A117.1, and are listed by Underwriter Laboratories to U.S. and Canadian standards. FOR INDOOR USE ONLY Product Includes: • 1109.8: Chilled Single Drinking Fountain • 1920: Bottle Filler • HCR8: Remote Chiller • 6469: Drip Tray • BP15: Back Panel • 67oo: Mounting Plate • MTGFR.SM: Mounting Frame

Manufacturer: Haws, Manufacturer Part Number: 1119.8PModel 1119.8P vandal-resistant wall-mounted ADA water cooler and bottle filler shall include dual 18-gauge Type 304 Stainless Steel satin-finish basins, 14 gauge bottle filler bracket, 16 gauge galvanized steel in-wall mounting frame with welded-in heavy-duty 10 gauge mounting plate, vandal-resistant push button operated stainless steel valves with front accessible cartridge, in-line strainer and flow adjustment provide 100% lead free waterways, in-wall 3/16" thick steel mounting plate for the bottle filler, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated vandal resistant waste strainers, vandal-resistant bottom plates, stainless steel satin-finish back panel and louvered intrusion proof grill, high and low fountain mounting levels, and 1-1/4” NPT traps. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. Haws electric water coolers comply with ARI Standard 1010 and ANSI A117.1, and are listed by Underwriter Laboratories to U.S. and Canadian standards. FOR INDOOR USE ONLY Product Includes: • 1119.8: Chilled Dual Drinking Fountains • 1920: Bottle Filler • HCR8: Remote Chiller • BP32: Back Panel • 67oo: Mounting Plate • 6469: Drip Tray • MTGFR.LG:Mounting Frame

Manufacturer: Haws, Manufacturer Part Number: 1119.8BModel 1119.8B ADA electric wall-mounted vandal-resistant water cooler shall include dual 18-gauge Type 304 Stainless Steel satin finish basins, 16 gauge galvanized steel in-wall mounting frame with welded-in heavy-duty 10 gauge mounting plate, vandal-resistant push button operated stainless steel valves with front-accessible cartridge, in-line strainer and flow adjustment, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler heads, polished chrome-plated vandal-resistant waste strainers, vandal-resistant stainless bottom plates, stainless steel satin finish back panel and louvered intrusion-proof grill, high and low fountain mounting levels, and 1-1/4" NPT concealed all cast-brass traps. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5 FOR INDOOR USE ONLY Product Includes: • 1119.8: Chilled Dual Drinking Fountains • HCR8: Remote Chiller • MTGFR.LG:Mounting Frame

Manufacturer: Haws, Manufacturer Part Number: 1001.8BModel 1001.8B ADA vandal-resistant electric wall-mounted water cooler shall include an 18-gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14-gauge Type 304 Stainless Steel wall bracket, 16 gauge galvanized steel in-wall mounting frame with welded-in heavy-duty 10 gauge mounting plate, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, stainless steel satin finish back panel and louvered intrusion-proof grill, and 1-1/4" (3.2 cm) O.D. waste pipe. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5 FOR INDOOR USE ONLY Product Includes: • 1001.8:Chilled Single Drinking Fountain • HCR8: Remote Chiller • MTGFR.SM: Mounting Frame

Manufacturer: Haws, Manufacturer Part Number: 1109.8BModel 1109.8B vandal-resistant ADA electric wall-mounted water cooler shall include an 18-gauge Type 304 Stainless Steel satin finish basin, 16 gauge galvanized steel in-wall mounting frame with welded-in heavy-duty 10 gauge mounting plate, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge, in-line strainer and flow adjustment, 100% lead-free waterways, polished chrome-plated brass vandal-resistant bubbler head, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, stainless steel satin finish back panel and louvered intrusion-proof grill, and 1-1/4" NPT concealed all cast-brass trap. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. FOR INDOOR USE ONLY Product Includes: • 1109.8: Chilled Single Drinking Fountain • HCR8: Remote Chiller • MTGFR.SM: Mounting Frame

Manufacturer: Haws, Manufacturer Part Number: 1001BModel 1001B wall mounted barrier-free vandal-resistant drinking fountain shall include an 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket, 3/16″ (.47 cm) thick steel in-wall mounting plate, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, and 1-1/4" (3.2 cm) O.D. waste pipe. (P-trap and stop require rear access) In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions. Product Includes: • 1001: Fountain • 6700: In-Wall Mounting Plate

Manufacturer: Haws, Manufacturer Part Number: 1001MSBModel 1001MSB wall mounted barrier-free vandal-resistant drinking fountain shall include an 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket, 100% lead-free waterways, stainless steel satin finish back and access panel allowing for front access of P-trap and stop, in-wall mounting frame, vandal-resistant push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, and 1-1/4" O.D. (3.2 cm) waste pipe. In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions. Product Includes: • 1001MS: Single Drinking Fountain • MTGFR.DF1: Mounting System

Manufacturer: Haws, Manufacturer Part Number: 1001PModel 1001P wall mounted vandal-resistant ADA drinking fountain and bottle filler shall include an 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket and bottle filler bracket, 3/16″ (.47 cm) thick steel mounting plates for fountain and bottle filler, 100% lead-free waterways, vandal-resistant push-button operated stainless steel valves with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plates, and 1-1/4" (3.2 cm) O.D. waste pipe. (P-trap and stop require rear access). In extreme environments related to heat and cold, product(s) must be protected from damage/exposure due to these extreme conditions. Product Includes: • 1001: Single Drinking Fountain • 1920: Bottle Filler • BP6: Back Panel • BP15: Back Panel • 6700 (X2): In-Wall Mounting Plates

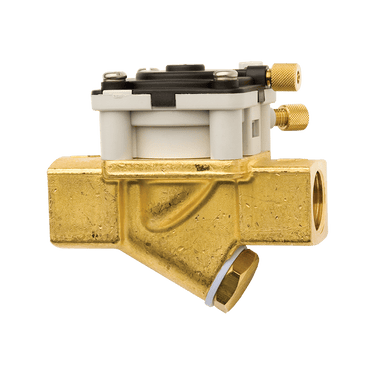

Manufacturer: Haws, Manufacturer Part Number : 5881Model 5881 fountain valve is a push-button activated lead-free air valve used on all freeze-resistant drinking fountains. It is diaphragm controlled, supplied with an in-line mesh Y-strainer, and 1/2" NPT inlet and outlet.

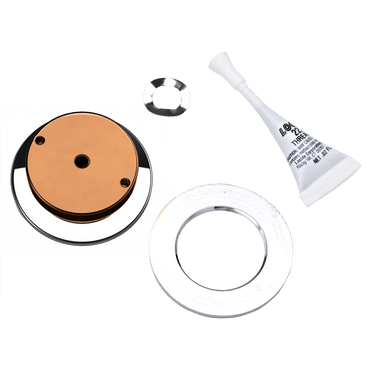

Manufacturer: Haws, Manufacturer Part Number : PBA6CThe Haws model PBA6C flanged push button assembly can be used as a hygienic option to the chrome push button supplied with valve 5874PBF, is made with 99.9% copper plating (button only), and includes the push button, operator, round locknut, snap ring, and wave washer. This model is used on flush mounted (not recessed) front stainless steel drinking fountain models.

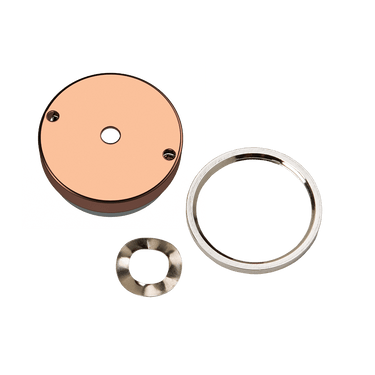

Manufacturer: Haws, Manufacturer Part Number : PBA7CThe Haws model PBA7C push button assembly can be used as a hygienic option to the chrome push button supplied with valve 5874PB, is made with 99.9% copper plating (button only), and includes the push button, operator, round locknut, snap ring, and wave washer. This model is used on drinking fountains with front recessed push buttons and for drinking fountains with thick walls.

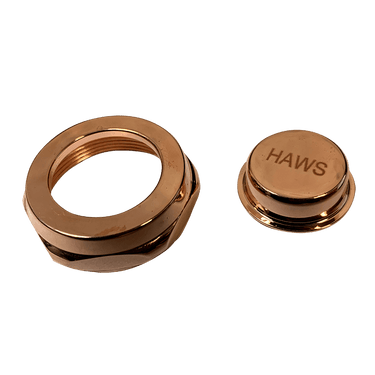

Manufacturer: Haws, Manufacturer Part Number : PBA8CThe Haws model PBA8C copper push button and nut can be used as a hygienic option to the chrome push button supplied with valve 5010SS, is made with 99.9% copper plating, and includes the push button and retaining nut.

Manufacturer: Haws, Manufacturer Part Number : BP15Model BP15 is a versatile and decorative back panel for model 1920 that increases location visibility of the bottle filler, and also helps protect wall from inadvertent splash. This back panel is 15" x 17" (38 x 43 cm) stainless steel with a satin finish. BP15 and 1920 can be used with 1001, 1107 and 1109 series models.

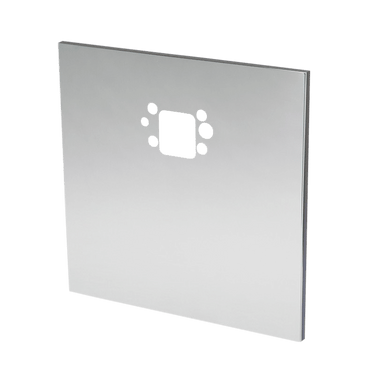

Manufacturer: Haws, Manufacturer Part Number : BP15HPSModel BP15HPS is a versatile and decorative back panel for model 1920HPS that increases location visibility of the bottle filler, and also helps protect wall from inadvertent splash. This back panel is 15" x 15" (38 x 38 cm) stainless steel with a polished finish. BP15HPS and 1920HPS can be used with model 1001HPS and H1001.8HPS.

Manufacturer: Haws, Manufacturer Part Number : BP3Model BP3 is a versatile and decorative back panel that increases location visibility of the fountain and also helps protect wall from inadvertent splash. Model BP3 is 15" x 9" (38 x 23 cm) stainless steel with a satin finish. Used on 1105 and 1109 series models.

Manufacturer: Haws, Manufacturer Part Number : BP32Model BP32 is a versatile and decorative back panel for model 1920 bottle filler that increases location visibility, and also helps protect wall from inadvertent splash. This back panel is 32" x 9.5" (81 x 24 cm) stainless steel with a satin finish. BP32 can be used with model 1920 over 1011, 1117 and 1119 series dual fountains.

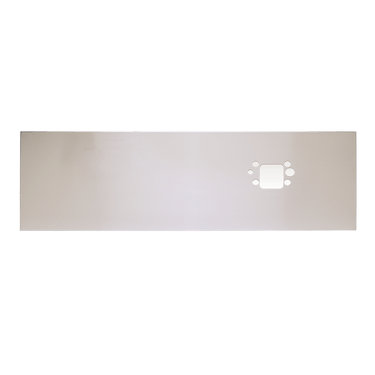

Manufacturer: Haws, Manufacturer Part Number : BP32HPSModel BP32HPS is a versatile and decorative back panel for model 1920HPS bottle filler that increases location visibility, and also helps protect wall from inadvertent splash. This back panel is 32" x 9.5" (81 x 24 cm) stainless steel with a polished finish. BP32HPS can be used with model 1920HPS over fountain models 1011HPS and H1011.8HPS.

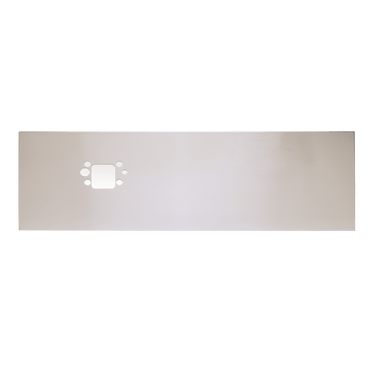

Manufacturer: Haws, Manufacturer Part Number : BP32RModel BP32R is a versatile and decorative reversed mount back panel for model 1920 bottle filler that increases location visibility, and also helps protect wall from inadvertent splash. This back panel is 32" x 9.5" (81 x 24 cm) stainless steel with a satin finish, and allows the bottle filler to be mounted over the right side low portion of the fountain that has been reversed from left side low. BP32R can be used with model 1920 over 1011, 1117 and 1119 series dual fountains.

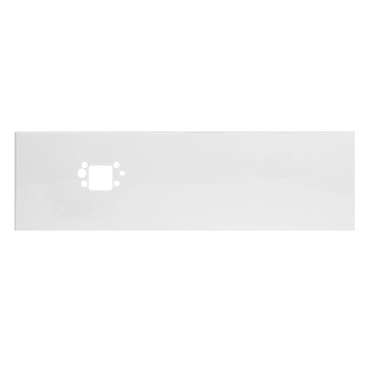

Manufacturer: Haws, Manufacturer Part Number : BP32RWModel BP32RW is a versatile and decorative reversed mount back panel for model 1920W bottle filler that increases location visibility of the bottle filler, and also helps protect wall from inadvertent splash. This back panel is 32" x 9.5" (81 x 24 cm) white painted stainless steel, and allows the bottle filler to be mounted over the right side low fountain portion of model 1501 which is reversed from the standard left side low.

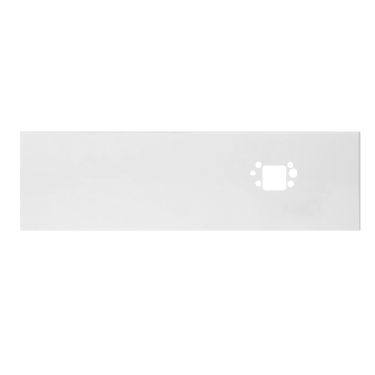

Manufacturer: Haws, Manufacturer Part Number : BP32WModel BP32W is a versatile and decorative back panel for model 1920W bottle filler that increases location visibility, and also helps protect wall from inadvertent splash. This back panel is 32" x 9.5" (81 x 24 cm) white painted stainless steel, and is mounted over model 1501.

Manufacturer: Haws, Manufacturer Part Number : BP6HPSModel BP6HPS is a versatile and decorative back panel that increases location visibility of the fountain and also helps protect wall from inadvertent splash. It is a 15" x 9" (38 x 23 cm) high-polished stainless steel panel.

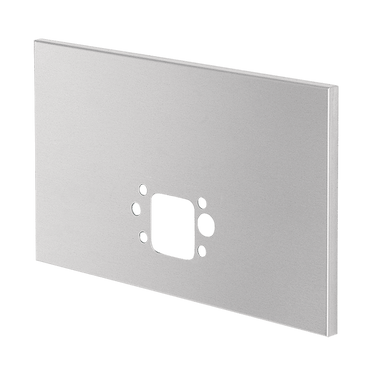

Manufacturer: Haws, Manufacturer Part Number : BP6Model BP6 is a versatile and decorative back panel that increases location visibility of the fountain and also helps protect wall from inadvertent splash. Model BP6 is 15" x 9" (38 x 23 cm) stainless steel with a satin finish.

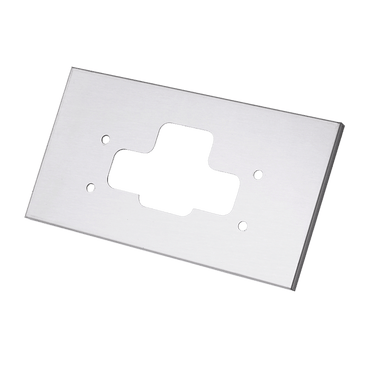

Manufacturer: Haws, Manufacturer Part Number : BP7Model BP7 is a versatile and decorative back panel for Model 1107L that increases location visibility of the fountain and also helps protect wall from inadvertent splash. It is a 15" x 9" (38 x 23 cm) satin stainless steel panel.
