Geo Ground Grid Cellular System for Landscaping Stabilization and Erosion Control, 25 Ton Load Capacity, GeoGrid® - Model GEO-2.4

Manufacturer: Checkers, Manufacturer Part Number: GEO-2.4

The GeoGrid® from Checkers™ is a cellular grid paving system that enables the fast and efficient implementation of permanent ground reinforcement and stabilization.

The grids of the ground reinforcement cellular system allow the dispersion of excess rain and flood water. It is ideal for integration into Sustainable Urban Drainage Systems (SUDS) and in areas prone to flooding or with water dispersion problems. GeoGrid® is also ideal for use in car parks, access routes, gateway or entrance areas, equestrian areas, fire and emergency routes, private driveways or golf cart paths. If you need a driveway grid system, this product can help with that.

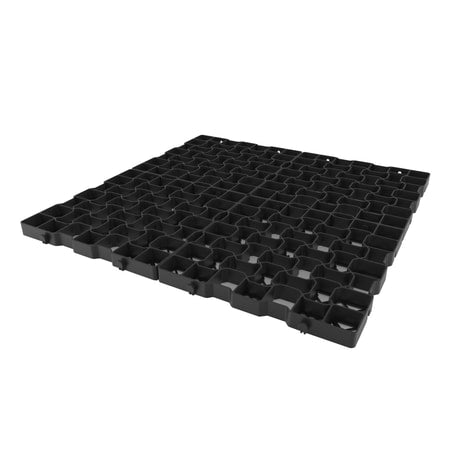

Manufactured from 100% recycled high-density polyethylene and features an effective and simple interlocking design for fast and efficient installation, the grids can be lifted directly from the pallet as pre-connected 1 m² sections. GeoGrid® Standard can support loads of up to 350 tons per m² and Premium up to 500 tons per m².

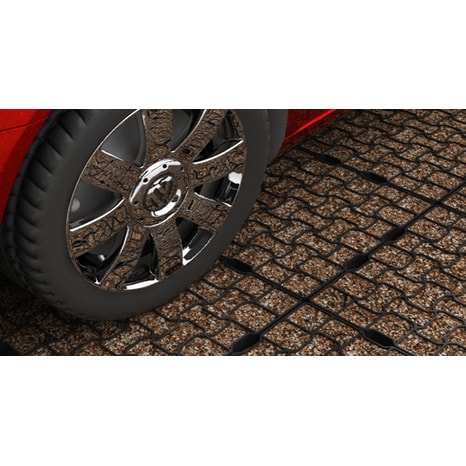

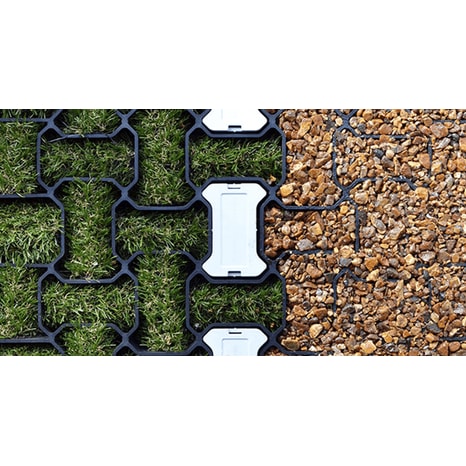

GeoGrid® can be filled in with aggregate or decorative stones to provide robust ground reinforcement in areas of high pedestrian or vehicle use and can also be seeded with grass to provide an environmentally friendly and aesthetic grass stabilization grid solution. There is also an option of white or hi-vis demarcation blocks ideal for use where there is a requirement for indicating specific zones such as in car parks, depot areas, disabled parking bays, and traffic flow directions.

*Load bearing capacity is dependent on ground conditions.  Sizing is subject to manufacturing variance of +/- 5%.

• 100% recycled high-density polyethylene (HDPE)
• Premium option supports loads of up to 500 tons per m²
• Pre-connected in 1m² sections (UK only)
• Interlocking design for fast installation
• Durable and lightweight
• Available in Standard or Premium depending on load bearing requirements
• Can be filled in with decorative stones, seeded with grass or with high visibility inserts
• GeoGrid® ground reinforcement and stabilization grids can equal or better the axle or point load performance of other currently available 40mm or 50mm cellular geopavers.
