Manufacturer: Morse, Manufacturer Part Number: 82H-XR-125
Specific to Model 82H-XR-125

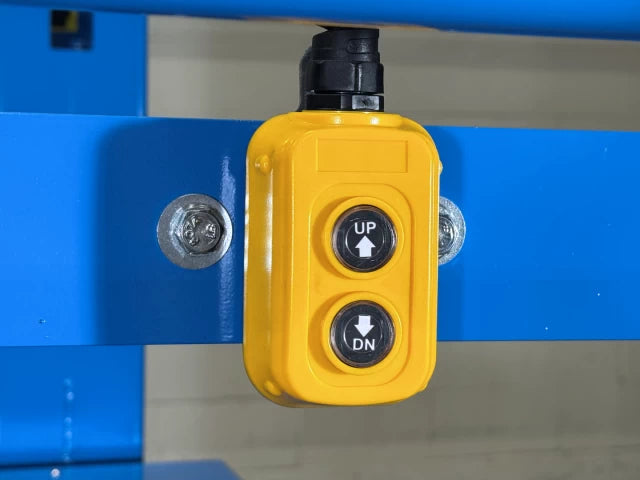

-12V DC Battery Power Drum Lift with wired 2-button pendant
-Battery disconnect switch to power on/off
-Battery charge level display
-Convenient panel mounted charger plug
-Includes battery and charger

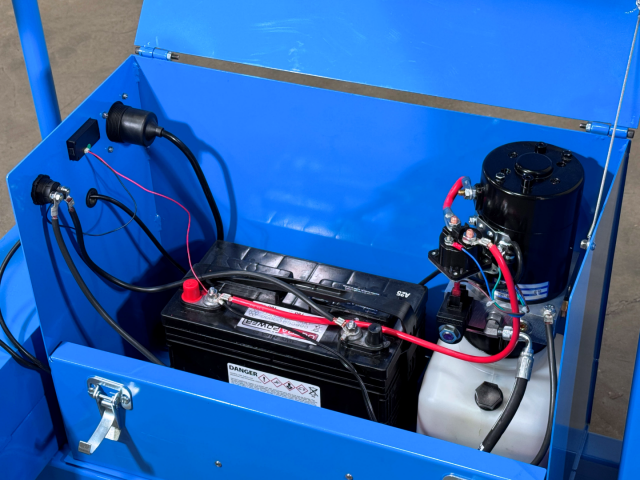

-Hydraulic power unit is protected in enclosed box

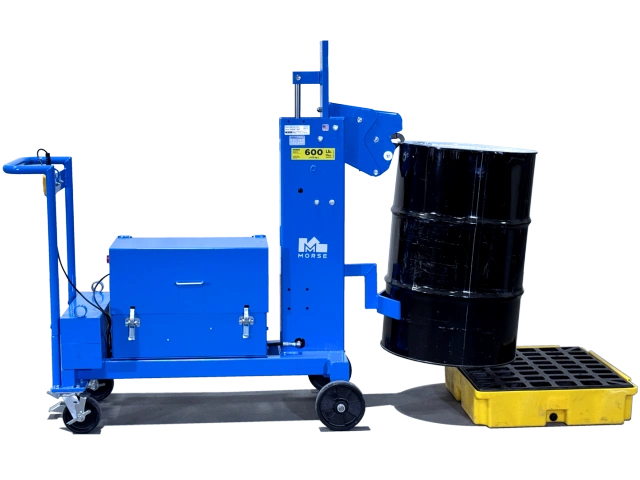

All 82H-XR Extended Reach Palletizers

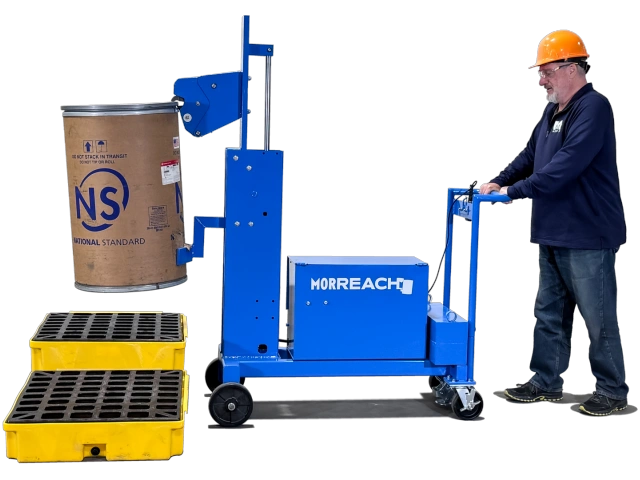

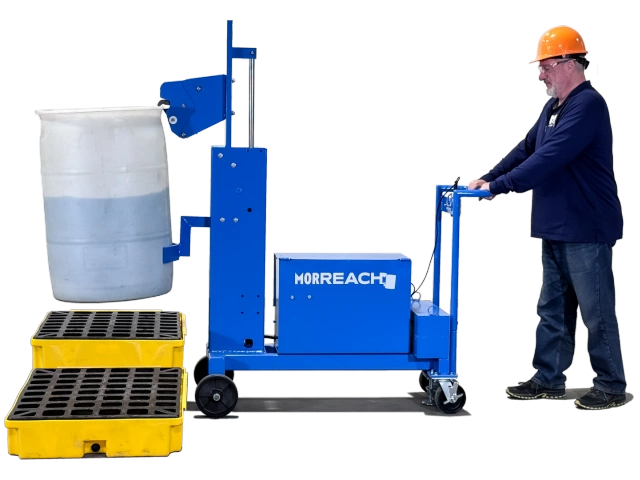

-Extended reach drum handler to access drum on pallet, spill containment, cabinet, etc.
-Raise a 34-7/8” (886 mm) tall drum up to 19” (483 mm) above the floor
-Efficiently move upright drum onto and off pallets and floor
-Bottom of drum is held 4" (101.6 mm) beyond the front wheels
-Handle virtually any RIMMED steel, fiber or plastic drum... tight head or securely clamped top in place

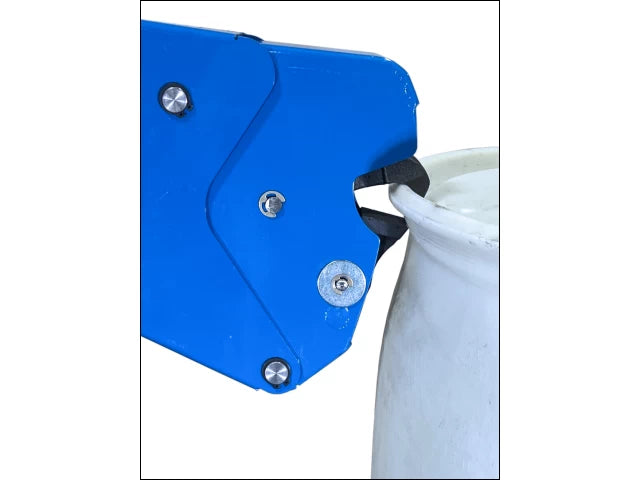

-Completely mechanical automatic drum grip
-Handle drums size various
-Requires drum at least 22” (558.8 mm) tall
-Requires 75 Lb. (34 kg) minimum drum weight to activate jaws
-Choose model with ergonomic lift... either battery or air power
-Easy maneuverability on 6" (152.4 mm) Rear casters and 8" (203.2 mm) front wheels

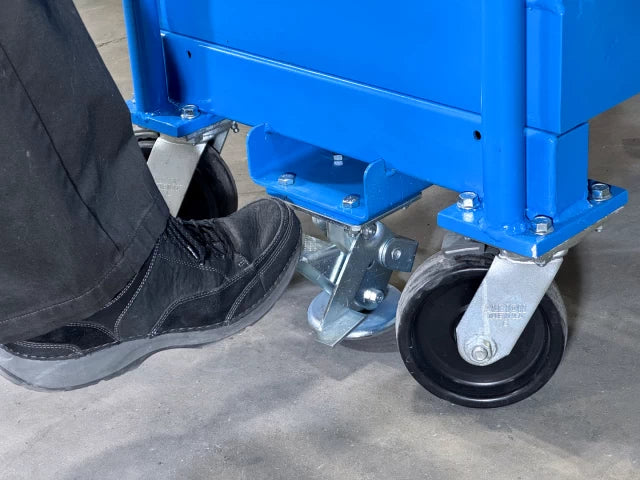

-Step-down floor lock to hold in place
-24” (609.6 mm) wide base to fit in tighter areas
-Rear counterweight for stability
-Capacity: 600 Lb. (272 kg)
