Drum Gauges

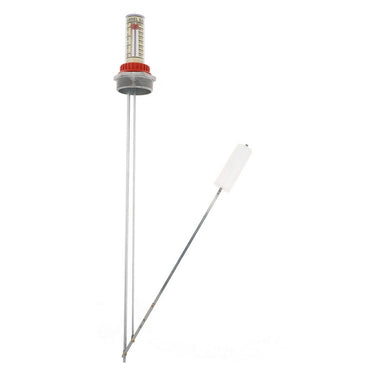

Manufacturer: Krueger Sentry, Manufacturer Part Number: B-30-.75The Barrel Gauge Type B is a reliable, swing arm type drum gauge used for measuring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Standard Barrel Gauge Construction – Plastic Calibration, HDPE Lock Nut, Duro Nitrile Gasket, Aluminum Bushing, Galvanized Steel Rods, Nitrophyl Floats. This is a Barrel Gauge for a 30 gallon drum, .75" NPT opening.

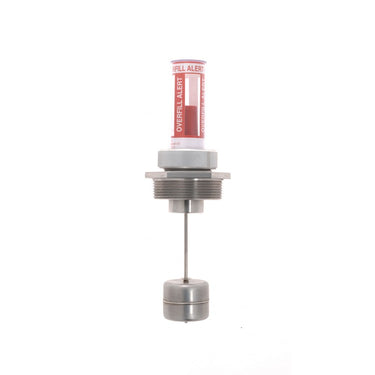

Manufacturer: Krueger Sentry, Manufacturer Part Number: OF-2-6-S3The Overfill Alert Gauge is a high level visual gauge designed to visually alert you that your AST (tank) is near full. This overfill monitor's simple pop up mechanical design promotes easy installs, maximum durability, and low up front costs. Overfill Alert Gauge Construction – Stainless steel rods, floats and bushing, includes aluminum lock nut and glass calibration. Gauge comes with a 2'' NPT opening & 6'' tank depth.

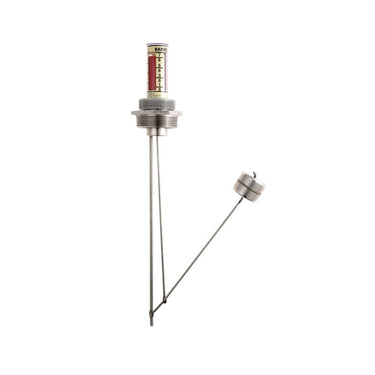

Manufacturer: Krueger Sentry, Manufacturer Part Number: B-55-2-S1The Barrel Gauge Type B is a reliable, swing arm type drum gauge used for measuring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Standard Barrel Gauge Construction – Plastic Calibration, HDPE Lock Nut, Duro Nitrile Gasket, Aluminum Bushing, Galvanized Steel Rods, Nitrophyl Floats. This is a Barrel Gauge for a 55 gallon drum, 2" NPT opening with stainless steel rods.

Manufacturer: Krueger Sentry, Manufacturer Part Number: B-30-2The Barrel Gauge Type B is a reliable, swing arm type drum gauge used for measuring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Standard Barrel Gauge Construction – Plastic Calibration, HDPE Lock Nut, Duro Nitrile Gasket, Aluminum Bushing, Galvanized Steel Rods, Nitrophyl Floats. This is a Barrel Gauge for a 30 gallon drum, 2'' NPT opening.

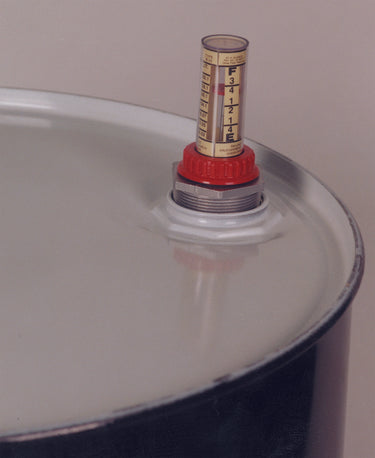

Manufacturer: Krueger Sentry, Manufacturer Part Number: B-55-2Barrel Gauge allows you to see how much is left in your vertical drums and is available for both 3/4" and 2" NPT bung openings. SPECIFICATIONS1 lb.1 gauge2" Bung Opening

Manufacturer: Vestil, Manufacturer Part Number: DGLI-4The Horizontal Drum Gauge Level Indicator allows personnel to read the level of contents in a drum. Gauge accepts a faucet (sold separately). For use with plastic or steel drums. Works well with most oils, solvents, and chemicals. Faucet is not included. MFG Part# DGLI-4

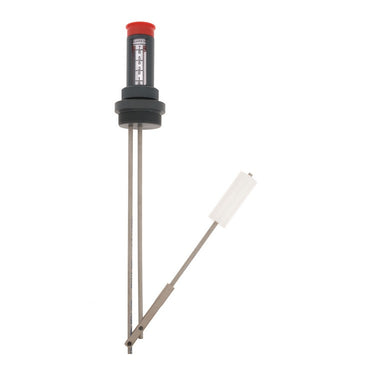

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-96The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 96'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-76The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 76'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-84The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 84'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-72The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 72'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-64The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 64'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-60The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 60'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-54The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 54'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-48The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 48'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-46The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 46'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-45The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 45'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-44The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 44'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-42The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 42'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-38The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 38'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-36The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 36'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-32The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 32'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-30The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 30'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-27The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 27'' tank depth.

Manufacturer: Krueger Sentry, Manufacturer Part Number: PH-1.5-24The all plastic Therma Type PH Level gauge is a reliable, swing arm type tank gauge used for monitoring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. Therma Plastic Gauge Construction – Glass calibration, PVC bushing, PVC thermalwell, viton gasket, polyethylene float, peek rivets and PVC gauge guard. Comes with a 1.5'' NPT opening & 24'' tank depth.
