Dock Boards

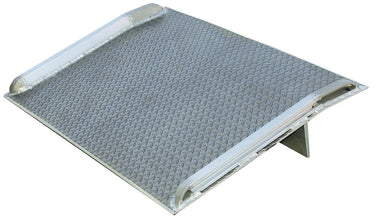

Manufacturer: Vestil, Manufacturer Part Number: BTA-08006660Size (W x L): 66" x 60", Ht. Difference (8°/17%): 7", Ht. Difference (11°/19%): 10", Capacity: 8,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-08006636Size (W x L): 66" x 36", Ht. Difference (8°/17%): 4", Ht. Difference (11°/19%): 5", Capacity: 8,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06007236Size (W x L): 72" x 36", Ht. Difference (8°/17%): 4", Ht. Difference (11°/19%): 5", Capacity: 6,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06006660Size (W x L): 66" x 60", Ht. Difference (8°/17%): 7", Ht. Difference (11°/19%): 10", Capacity: 6,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06006648Size (W x L): 66" x 48", Ht. Difference (8°/17%): 5", Ht. Difference (11°/19%): 7", Capacity: 6,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-06006636Size (W x L): 66" x 36", Ht. Difference (8°/17%): 4", Ht. Difference (11°/19%): 5", Capacity: 6,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-05007272Size (W x L): 72" x 72", Ht. Difference (8°/17%): 8", Ht. Difference (11°/19%): 11", Capacity: 5,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-05007260Size (W x L): 72" x 60", Ht. Difference (8°/17%): 7", Ht. Difference (11°/19%): 10", Capacity: 5,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-05007248Size (W x L): 72" x 48", Ht. Difference (8°/17%): 5", Ht. Difference (11°/19%): 7", Capacity: 5,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-05007236Size (W x L): 72" x 36", Ht. Difference (8°/17%): 4", Ht. Difference (11°/19%): 5", Capacity: 5,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

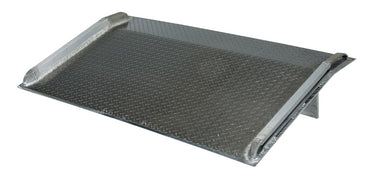

Manufacturer: Vestil, Manufacturer Part Number: BTA-05007230Size (W x L): 72" x 30", Ht. Difference (8°/17%): 3", Ht. Difference (11°/19%): 4", Capacity: 5,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-05006660Size (W x L): 66" x 60", Ht. Difference (8°/17%): 7", Ht. Difference (11°/19%): 10", Capacity: 5,000 lbs – Aluminum Truck Dockboards with Welded Aluminum Curbs – Engineered and built to maximize safety while handling heavy fork trucks and loads. Locking legs prevent movement during loading and unloading operations. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Bend is 11° and 9" from the edge and the legs are 12" from the edge. Manufactured in compliance with OSHA.

Manufacturer: Vestil, Manufacturer Part Number: BTA-20006066Uniform Capacity (lbs.): 20000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 53–3/4, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-15005436Uniform Capacity (lbs.): 15000, Height Difference (in.) at 8 degree/17%: 4, Height Difference (in.) at 11 degrees/19%: 5, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 49–1/2, Usable Length (in.) : 36 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-15006066Uniform Capacity (lbs.): 15000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 53–3/4, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-15005472Uniform Capacity (lbs.): 15000, Height Difference (in.) at 8 degree/17%: 8–1/2, Height Difference (in.) at 11 degrees/19%: 12, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 47–3/4, Usable Length (in.) : 72 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-15005448Uniform Capacity (lbs.): 15000, Height Difference (in.) at 8 degree/17%: 5–1/2, Height Difference (in.) at 11 degrees/19%: 7, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 47–3/4, Usable Length (in.) : 48 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-12006078Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 9, Height Difference (in.) at 11 degrees/19%: 13, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 53–3/4, Usable Length (in.) : 78 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-12006066Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 53–3/4, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-12006042Uniform Capacity (lbs.): 12000, Height Difference (in.) at 8 degree/17%: 5, Height Difference (in.) at 11 degrees/19%: 6, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 53–3/4, Usable Length (in.) : 42 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-11006072Uniform Capacity (lbs.): 11000, Height Difference (in.) at 8 degree/17%: 8–1/2, Height Difference (in.) at 11 degrees/19%: 12, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 55–1/2, Usable Length (in.) : 72 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-11006066Uniform Capacity (lbs.): 11000, Height Difference (in.) at 8 degree/17%: 8, Height Difference (in.) at 11 degrees/19%: 11, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 55–1/2, Usable Length (in.) : 66 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-11006060Uniform Capacity (lbs.): 11000, Height Difference (in.) at 8 degree/17%: 7, Height Difference (in.) at 11 degrees/19%: 10, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 55–1/2, Usable Length (in.) : 60 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.

Manufacturer: Vestil, Manufacturer Part Number: BTA-11006054Uniform Capacity (lbs.): 11000, Height Difference (in.) at 8 degree/17%: 6, Height Difference (in.) at 11 degrees/19%: 8–1/2, Bend Degree: 11, Bend Distance from Edge (in.): 9, Leg Distance from Edge (in.): 12, Usable Width (in.): 55–1/2, Usable Length (in.) : 54 – Aluminum Truck Dockboard is built to maximize safety while handling heavy fork trucks and loads. Beveled edge is designed for smooth entry and exit. Designed for low/medium traffic applications. Locking legs prevent movement during loading/unloading. Welded aluminum safety curbs prevent accidental runoffs and provide visible driving lane. Locking legs are uneven to allow the dockboard to sit canted, while not in use, for easier pickup by fork trucks. Manufactured in compliance with OSHA. Capacity is based upon equipment + max load carried multiplied by the single axle rating of total load. Dynamic loading, driver tendencies, speed and frequency of use must be considered.
